Varenummer: 3442191

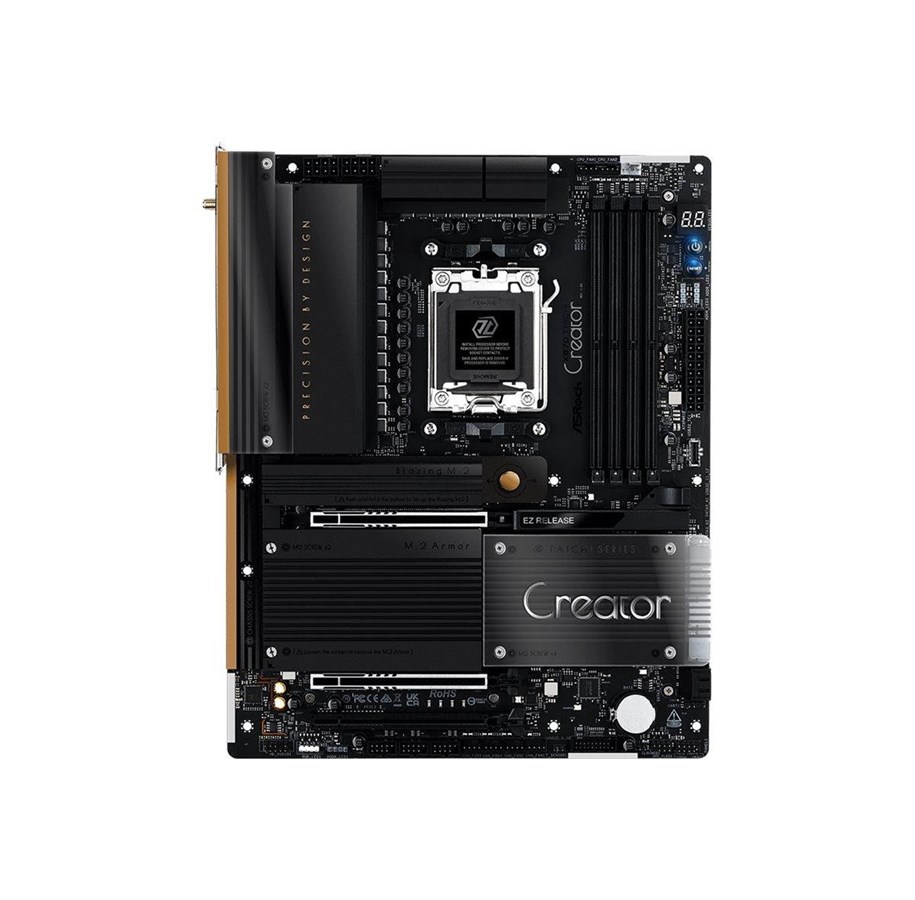

ASRock X870 TAICHI CREATOR Bundkort - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX

Bundkort, ATX, Socket AM5, AMD X870 Chipset, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)

Læs mere
2.562,00 kr. 2.049,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestilt - ukendt leveringsdato

The ASRock X870 TAICHI CREATOR motherboard is engineered for high-performance computing with a sophisticated design, suitable for gamers and content creators. It supports AMD Ryzen processors, providing flexibility for high-speed performance with DDR5 RAM technology, allowing memory speeds of up to 8000 MT/s when overclocked. The motherboard features multiple storage interfaces, including several M.2 slots for SSDs, and multiple USB ports that cater to various connectivity needs, enhancing the overall user experience.Equipped with high definition audio support via the Realtek ALC4082 codec, this motherboard is tailored for sound output, making it an ideal choice for multimedia applications. Networking capabilities are offered with dual 10 Gigabit Ethernet and Wi-Fi 7 compatibility, ensuring robust and speedy Internet connectivity. The X870 TAICHI CREATOR is designed with user-friendly features, such as a pre-mounted I/O shield and an intuitive UEFI BIOS, making installation and configuration simple and effective for enthusiasts and professionals.

Producent
Varenummer
3442191
Model
90-MXBTE0-A0UAYZ
Ean
4711581492066
Til producentens hjemmeside
Produktbeskrivelse
ASRock X870 TAICHI CREATOR - bundkort - ATX - Socket AM5 - AMD X870
Produkttype
Bundkort - ATX
Chipsættype
AMD X870
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 1 x Hyper M.2, 2 x Blazing M.2, 1 x Ultra M.2
USB / FireWire porte
2 x USB4 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD X870
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
8000 MT/s (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC4082
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8126 / Marvell (Aquantia) AQC113
Netværks interfaces
10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
2 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-modus)
1 x M.2 socket (Key E)
4 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -stikforbindelser: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
Interface
2 x antenne
1 x HDMI
2 x USB4
2 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
1 x SPDIF-ud
Interne interfaces
6 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 2x2 - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
18+2+1 Phase Power Design, Enlarged Heatsink Armor, præmonteret I/O-skjold, 20K sorte kapacitorer, BIOS FlashBack-knap, ASRock Auto Driver Installer, ASRock Polychrome RGB, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, 80A Smart Power Stage, Nahimic Audio Enhacer, 8 Layer PCB, chipset-kølelegeme, forstørret M.2 kølelegeme, DIY Friendly Design, anti-tab M.2 kølelegemeskrue

Diverse

Udstyr inkluderet
ASRock WiFi 2,4/5/6 GHz antenne, 1 til 2 ARGB LED-opdelerkabel, termistorkabel
Medfølgende ledninger
4 x Seriel ATA kabel
Med software
ASRock A-Tuning, ASRock Polychrome SYNC
Overensstemmelsesstandarder
ErP Ready, EuP Ready, FCC
Bredde
30.5 cm
Dybde
24.4 cm
