Varenummer: 2858696

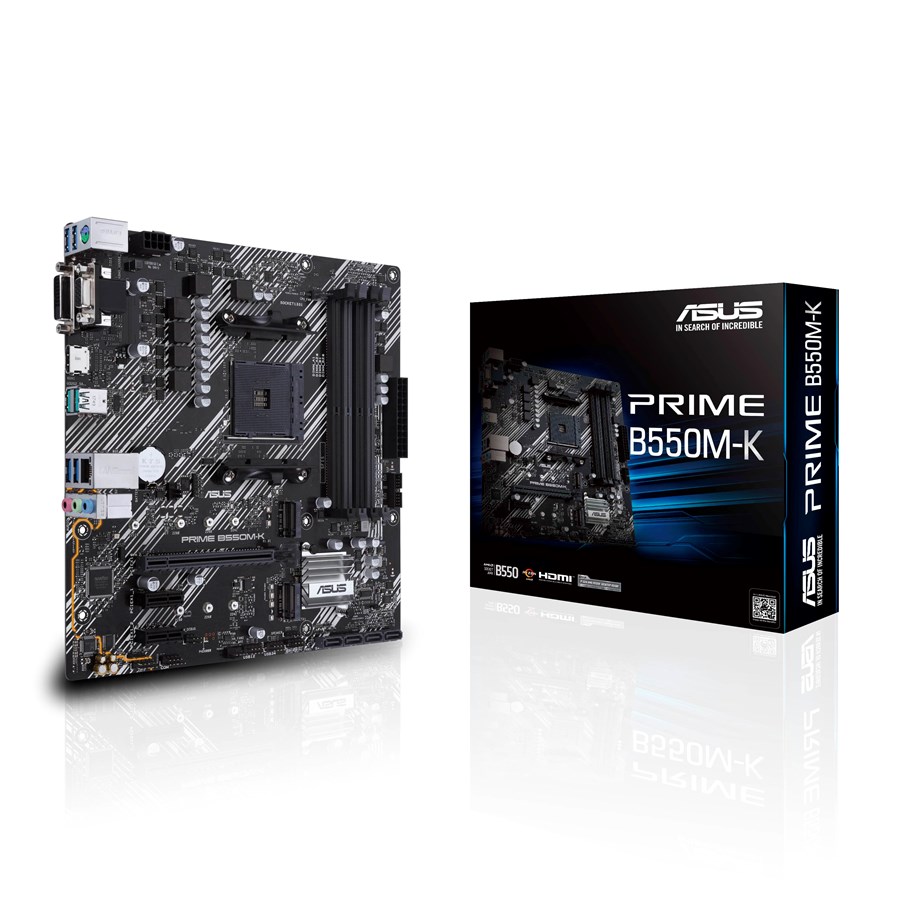

ASUS PRIME B550M-K Bundkort - AMD B550 - AMD AM4 socket - DDR4 RAM - Micro-ATX

Bundkort, Micro-ATX, AMD AM4 Socket, AMD B550, PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 & 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A, D-Sub / DVI-D / HDMI 2.1 tilslutning, Realtek 8111H Gigabit LAN, AMD Vega Graphics understøttelse (CPU påkrævet), Realtek ALC887 HD Audio (8-kanaler)

Læs mere
728,00 kr. 582,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering

Prime B550M-K

Zenbook 14

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors

• Comprehensive cooling: PCH heatsink and Fan Xpert 2+

• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A

• 5X Protection III: Multiple hardware safeguards for all-around system protection

Zenbook 14

Cooler by Design

Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan - Each onboard chassis fan header supports PWM and DC mode.

Zenbook 14

PCIe 4.0 M.2(up to 64 Gbps) - Achieve speed with onboard M.2

PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

Zenbook 14

USB 3.2 Gen 2 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Zenbook 14

SafeSlot Core - Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

1. ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

RAM

Producent
Varenummer
2858696
Model
90MB14V0-M0EAY0
Ean
4718017758284
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS PRIME B550M-K - bundkort - micro ATX - Socket AM4 - AMD B550
Produkttype
Bundkort - micro ATX
Chipsættype
AMD B550
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter 3. Generation Ryzen)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
AMD B550
Processor-socket
Socket AM4
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter 3. Generation Ryzen)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
Understøttet RAM-integritetskon
ECC
Registreret eller buffer
Ikke bufferet

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8111H
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
Interface
1 x VGA
1 x DVI-D
1 x LAN (Gigabit Ethernet)
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x PS/2-tastatur/mus
1 x HDMI
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x SPDIF ud - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x højttaler - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Armoury Crate

Diverse

Udstyr inkluderet
I/O-bagdække, 1 x M.2 anker
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 dages prøvetid)
Bredde
24.4 cm
Dybde
24.4 cm
