Varenummer: 3366036

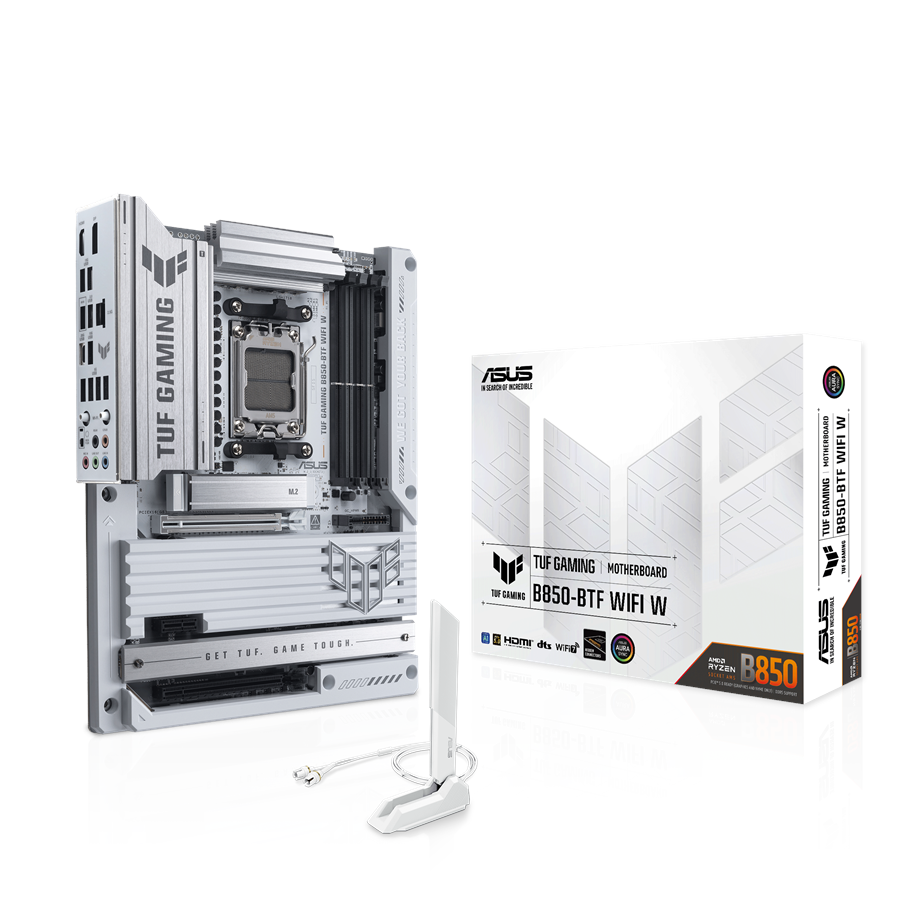

ASUS TUF GAMING B850-BTF WIFI WHITE Bundkort - AMD B850 - AMD AM5 socket - DDR5 RAM - ATX (BTF Standard)

Bundkort, størrelse: ATX (BTF standard), AMD AM5 socket, AMD B850 chipset, loddet onboard Connectors on the back on the motherboard for cleaner cable routing, requires special cases. See accessory for which cases are compatible with this motherboard, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), lagrings tilslutninger: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 2.5 Gigabit netværk (LAN), WiFi 7 & Bluetooth 5.4, AMD Graphics supporteret (CPU med VGA påkrævet), Realtek ALC1220P HD Audio (8-kanaler) lydkort, ASUS AURA Sync software

Læs mere
På lager
1.718,00 kr. 1.374,40 kr. ekskl. moms
Gratis fragt (privatkunde)
15+ stk. På lager - 1-2 dages levering

The ASUS TUF GAMING B850-BTF WIFI W motherboard is designed to enhance gaming and computing performance with its robust features. Engineered for AMD Ryzen processors, this ATX form factor board supports DDR5 SDRAM and features multiple expansion slots, allowing for a powerful setup with ease of connectivity. Equipped with high definition audio delivered via the Realtek ALC1220P codec, gamers can enjoy immersive sound quality while tackling intense challenges.

With support for a variety of storage options, including M.2 and RAID configurations, the TUF GAMING B850-BTF provides the flexibility needed to handle large files and demanding applications. Connectivity options include USB4, HDMI, and 2.5 Gigabit Ethernet, ensuring that users stay connected and can leverage fast data transfer speeds. Built with durability in mind, this motherboard features ASUS protection technologies that enhance reliability and performance, making it suitable for both gaming enthusiasts and professional users alike.

CPU

RAM

Producent
Varenummer
3366036
Model
90MB1KW0-M0EAY0
Ean
4711387941874
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS TUF GAMING B850-BTF WIFI W - bundkort - ATX - Socket AM5 - AMD B850
Produkttype
Bundkort - ATX
Chipsættype
AMD B850
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, on-die ECC, ikke-ECC, ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD B850
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
4000 MHz (O.C.)
Understøttet RAM-integritetskon
On-die ECC, ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220P
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x1
2 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -stikforbindelser: 1 x M.2
PCIe 4.0 -stikforbindelser: 2 x M.2
RAID-egenskaber
AMD RAID Xpert2 Technology
Interface
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen2x2
3 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
2 x antenne
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
1 x USB-C 3.2 Gen 2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x Thunderbolt 4 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, TUF LANGuard, BIOS FlashBack-knap, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 kølelegeme, M.2 Q-Latch, PCIe Slot Q-Release, præmonteret I/O-skjold, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM kølelegemedesign, 14+2+1 Phase Power Design, DIY Friendly Design, 8 Layer PCB, TUF 5K sorte metalliske kondensatorer, chipset-kølelegeme, forstørret M.2 kølelegeme, Preboot eXecution Environment (PXE)

Diverse

Udstyr inkluderet
2 x M.2 gummipakke, TUF GAMING-mærkat, ASUS Wi-Fi Q-antenna
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Armoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 dages prøvetid), WinRAR (40 days trial)
Bredde
30.5 cm
Dybde
24.4 cm
