Varenummer: 3414736

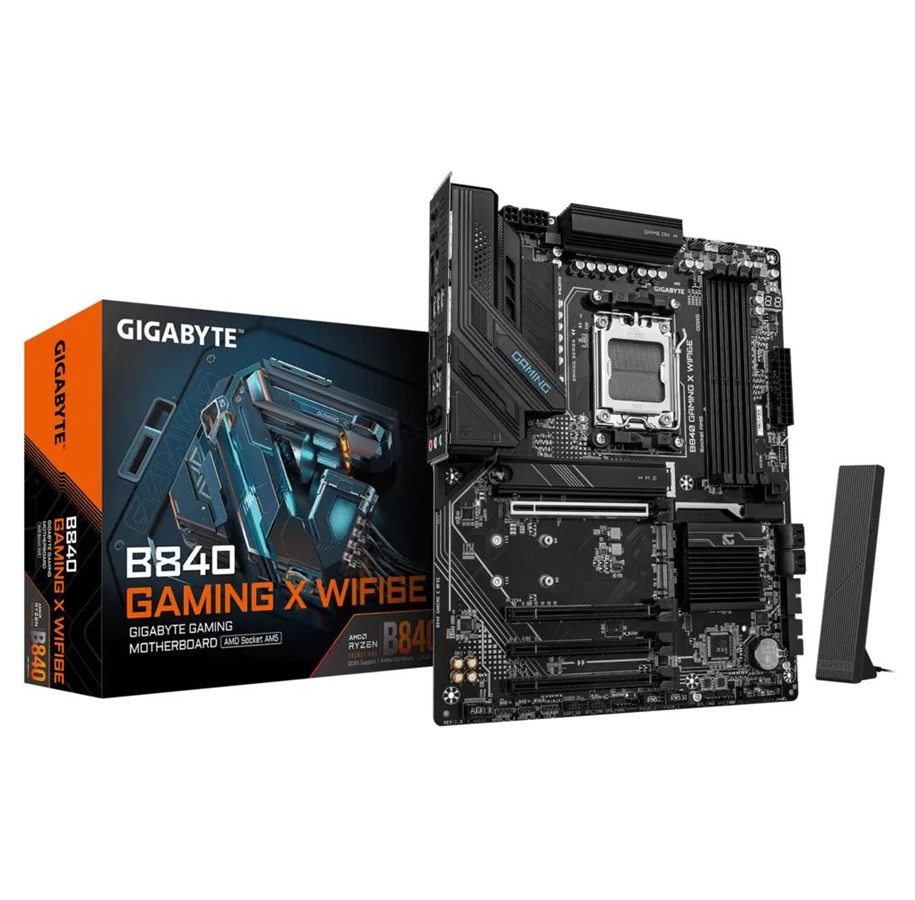

GIGABYTE B840 GAMING X WIFI6E Bundkort - AMD B840 - AMD AM5 socket - DDR5 RAM - ATX

Bundkort, størrelse: Micro-ATX, AMD AM5 socket, AMD B840 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), lagrings tilslutninger: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 2.5 Gigabit netværk (LAN), Realtek RTL8852CE WiFi 6E & Bluetooth 5.3, AMD Graphics supporteret (CPU med VGA påkrævet), Realtek HD Audio (8-kanaler) lydkort, Gigabyte Fusion RGB 2.0 software

Læs mere
1.201,00 kr. 960,80 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 4-5 dages levering

The GIGABYTE B840 GAMING X WIFI6E motherboard enhances your gaming experience and offers robust performance with various compatible processors, including the Ryzen 7000, 8000, and 9000 Series. Built with the AMD B840 chipset, this ATX form factor motherboard supports DDR5 SDRAM with speeds up to 7200 MT/s and features four DIMM slots, allowing for increased memory capacity and dual-channel architecture. It includes advanced BIOS features such as UEFI BIOS and hardware monitoring for system voltage, fan control, and temperature detection, ensuring performance and reliability during intense gaming sessions.Connectivity is a highlight, with integrated Wi-Fi 6E for fast wireless communication and a 2.5 Gigabit Ethernet port for stable wired connections. The board provides multiple USB interface options, including USB-C and USB 3.2, for high-speed data transfer. Exceptional hardware features include an ultra-durable design, PCIe EZ Latch for easy component installation, and M.2 Thermal Guard to keep storage devices cool. Experience gaming and productivity with the GIGABYTE B840 GAMING X WIFI6E motherboard, which combines performance, connectivity, and durability for an enhanced computing experience.

CPU

RAM

Producent
Varenummer
3414736
Model
B840 GAMING X WF6E
Ean
4719331876937
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte B840 GAMING X WIFI6E - bundkort - ATX - Socket AM5 - AMD B840
Produkttype
Bundkort - ATX
Chipsættype
AMD B840
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD B840
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6666 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7600 MT/s (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur

Audio

Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8852CE
Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x16 (x1 modus)
3 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface
1 x USB-C 3.2 Gen 2
4 x USB 2.0
1 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
2 x antenne
Interne interfaces
1 x USB-C 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x SPI - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, WfM 2.0 understøttet, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardwareovervågning
Systemspænding, temperaturdetektion, blæserkontrol, vandkølings-flowrate, blæserfejlvarsel, blæserhastighedsdetektion
Hardware egenskaber
12+2+2 Phase Power Design, 2x Copper PCB, Premium Power Choke, VRM Thermal Armor Advanced, præmonteret I/O-skjold, M.2 Thermal Guard, GIGABYTE Smart Fan 6, chipset-kølelegeme, DIY Friendly Design, WIFI EZ-Plug, EZ Debug LED, PCIe EZ Latch Plus, M.2 EZ Latch plus, M.2 EZ Latch klik, Ultra Durable, RGB FUSION

Diverse

Med software
Norton Internet Security (OEM Version)
Bredde
30.5 cm
Dybde
24.4 cm
