Varenummer: 3466503

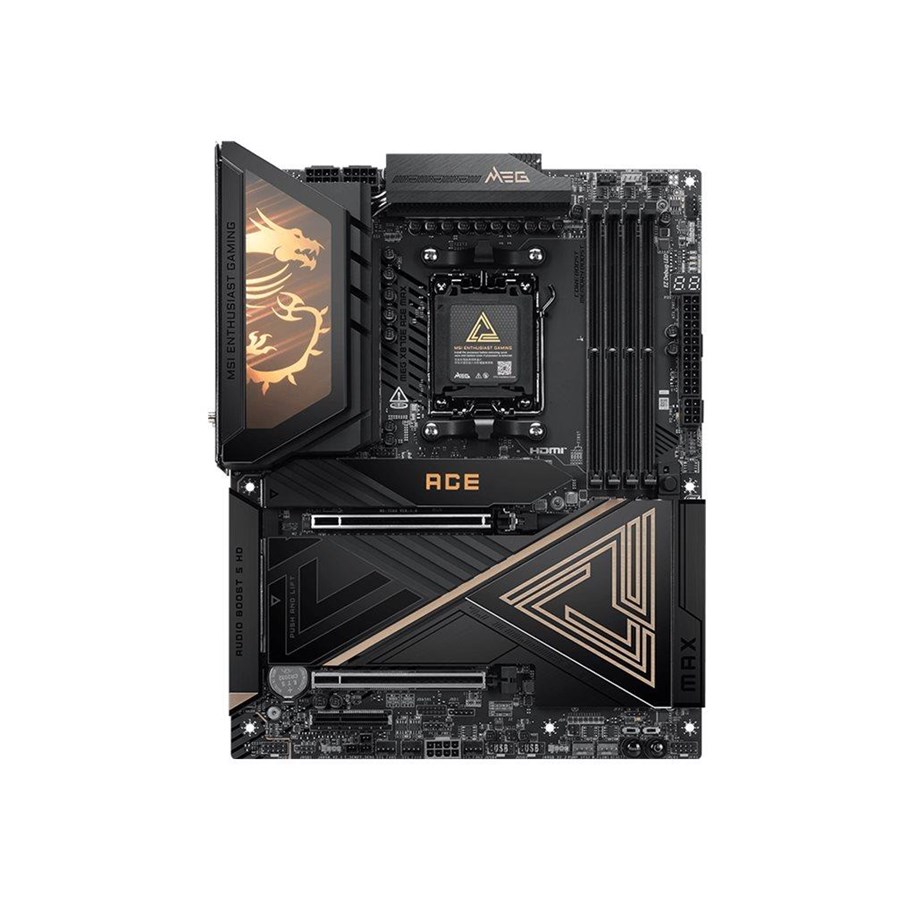

MSI MEG X870E ACE MAX Bundkort - AMD X870E - AMD AM5 socket - DDR5 RAM - ATX

Bundkort, ATX, Socket AM5, AMD X870E Chipset, USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, 5 Gigabit Ethernet, 10 Gigabit LAN, Wi-Fi 7, Bluetooth, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)

Læs mere
5.719,00 kr. 4.575,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 4-5 dages levering

The MSI MEG X870E ACE MAX motherboard is designed for performance enthusiasts and gamers seeking a powerful and flexible platform for their builds. Built on the AMD X870E chipset, it supports the Ryzen 7000, 8000, and 9000 Series processors, maximizing the potential of these high-end CPUs. With support for DDR5 SDRAM and speeds reaching 9000 MT/s, this motherboard allows users to equip their system with advanced memory configurations for superior multitasking and responsiveness.Connectivity options are abundant, as the MEG X870E ACE MAX features multiple USB 3.2 Gen 2 ports, including USB-C, along with USB4 compatibility. Users will appreciate the robust PCIe 5.0 slots that enable the installation of high-speed GPUs and NVMe drives. The advanced cooling features, including an aluminum heatsink design and Frozr AI Cooling technology, ensure optimal thermal management, while hardware monitoring keeps system temperatures in check. This motherboard meets the demands of modern gaming and content creation while providing extensive customization options through MSI's Mystic Light and EZ DIY technologies.

Producent
Varenummer
3466503
Model
MEG X870E ACE MAX
Ean
4711377414968
Til producentens hjemmeside
Produktbeskrivelse
MSI MEG X870E ACE MAX - bundkort - ATX - Socket AM5 - AMD X870E
Produkttype
Bundkort - ATX
Chipsættype
AMD X870E / Nuvoton NCT6687-R
Processor-socket
1 x Socket AM5
Kompatible processorer
(understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet, clocked unbuffered
Lagringsporte
4 x SATA-600 (RAID), 5 x M.2
USB / FireWire porte
2 x USB4 + 2 x USB-C 3.2 Gen 2 + 9 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
5 Gigabit Ethernet, 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD X870E / Nuvoton NCT6687-R
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
(understøtter Ryzen 7000/8000/9000 Serien)

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
9000 MT/s (O.C.), 5600 MT/s (O.C.), 8400 MT/s (O.C.), 6400 MT/s (O.C.), 5600 MT/s, 4800 MT/s
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet, clocked unbuffered
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, A-XMP support

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC4082 / ESS ES9219Q
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Marvell AQC113CS / Realtek RTL8126
Netværks interfaces
5 Gigabit Ethernet, 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
2 x PCIe 5.0 x16
1 x PCIe 5.0 x4
3 x M.2 socket (2260/2280 M.2 Key M-åbning)
1 x M.2 socket (2280/22.110 M.2 Key M-åbning)
1 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (Key E)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface
1 x HDMI
9 x USB 3.2 Gen 2
2 x USB-C 3.2 Gen 2
2 x USB4
1 x LAN (5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
2 x antenne
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x SPDIF-ud
Interne interfaces
1 x USB-C 3.2 Gen 2x2 - intern stik
4 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
1 x SPI - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser, 8-pins PCI Express strøm-stikforbindelse

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
MSI ClickBIOS, UEFI BIOS, ACPI 6,5 support, SMBIOS 3,7 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, blæserhastighedsdetektion, blæserkontrol
Hardware egenskaber
2oz Copper PCB, aluminiumkølelegemedesign, Clear CMOS Button, Cooling Wizard, EZ Conn-Design, EZ LED control, EZ M.2 Clip II, EZ Memory Detection, EZ PCIe frigivelse, flash BIOS-knap, Frozr AI Cooling, lightning gen4-løsning, lightning gen5-løsning, M.2 Shield FROZR, metalbagplade, MSI AI Engine, MSI AI LAN Manager, MSI Audio Boost 5 HD, MSI Companion, MSI Core Boost, MSI Memory Boost, MSI Mystic Light, MSI Steel Armor II, OC Engine, præmonteret I/O-skjold, Smart Button, Super Charger+, VRM kølelegemedesign, 18+2+1 Phase Power Design, 8 Layer PCB, chipset-kølelegeme, Enlarged Heatsink Armor, Frozr Heatsink Design, MSI EZ DIY, Surface Mount Technology (SMT)

Diverse

Udstyr inkluderet
1 til 3 ARGB Gen 2 forlængerkabel, 1 to 3 EZ Conn-Cable, 2 termistorkabler, EZ-frontpanelkabel, 3 x M.2 skruer, kabelmærkat, EZ M.2 klips II fjerner, EZ Wi-Fi antenne, USB-drev
Medfølgende ledninger
4 x Seriel ATA kabel
Med software
Adobe Creative Cloud (gratis prøve), AIDA64 Extreme - MSI Edition, Drivers & Utilities, Dropbox, Google Play Games on PC, MSI App Player, MSI Center, MSI CPU-Z, MSI DigiME, Norton 360, Voicemod, MSI Surfshark
Overensstemmelsesstandarder
JEDEC, DisplayPort 1.4, High Bit Rate 3 (HBR3)
Bredde
30.5 cm
Dybde
24.4 cm
