Varenummer: 3201906

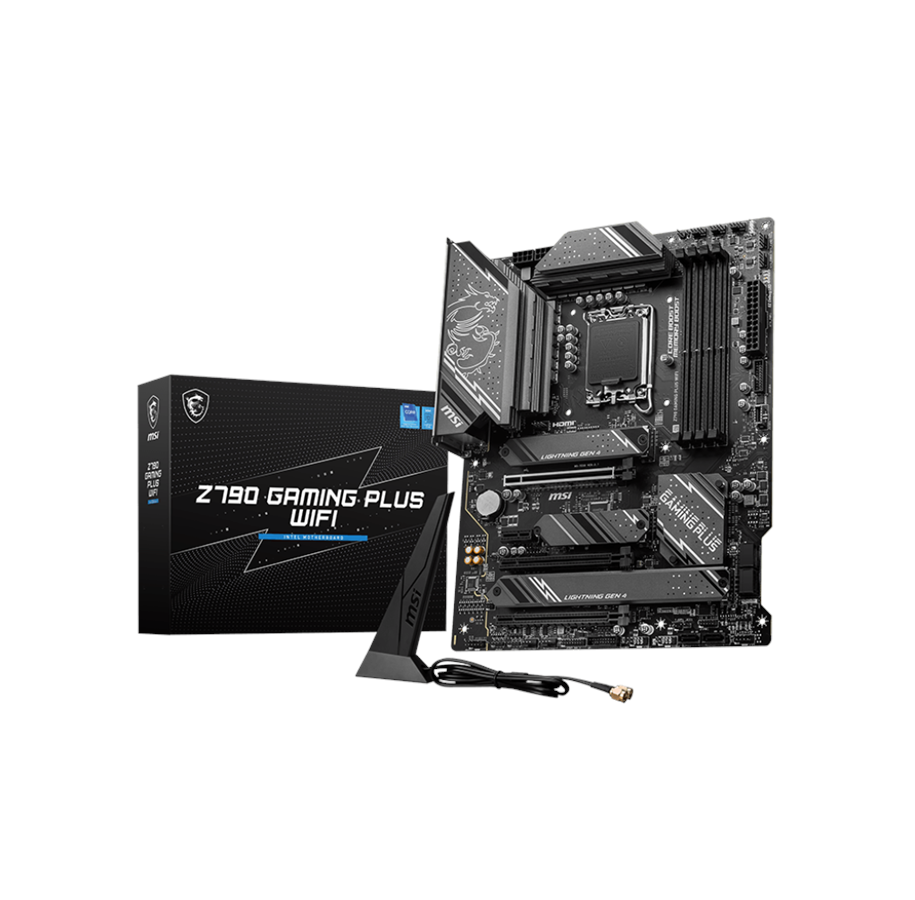

MSI Z790 GAMING PLUS WIFI Bundkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX
Bundkort, størrelse: ATX, Intel LGA1700 socket, Intel Z790 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), lagrings tilslutninger: 6 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Intel I225-V 2.5 Gigabit netværk (LAN), Intel WiFi 6E & Bluetooth 5.3, Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek ALC897 HD Audio (8-kanaler) lydkort, MSI Mystic Light software
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering
Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Producent
Varenummer
3201906
Model
Z790 GAMING PLUS WIFI
Ean
4711377134712
Til producentens hjemmeside
Produktbeskrivelse
MSI Z790 Gaming Plus Wifi - bundkort - ATX - LGA1700 sokkel - Z790
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
192 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Generelt
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse
192 GB
Teknologi
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
3 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
1 x M.2 socket (Key E)
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
3 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
1 x M.2 socket (Key E)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface
1 x HDMI
1 x DisplayPort
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud (sidesurround) - mini-jack
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tastatur/mus
1 x DisplayPort
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud (sidesurround) - mini-jack
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tastatur/mus
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 2 - intern stik
1 x Thunderbolt 4 - intern stik
1 x audio - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 2 - intern stik
1 x Thunderbolt 4 - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ACPI 6,4 support, SMBIOS 3,5 support, MSI ClickBIOS 5
Hardware egenskaber
MSI Mystic Light, Debug LED, M.2 Shield FROZR, MSI Core Boost, MSI Audio Boost, Extended Heatsink Design, præmonteret I/O-skjold, 6 Layer PCB, MSI PCIe Steel Slot, Water Pump Header, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Steel Armor, MSI Memory Boost
Diverse
Udstyr inkluderet
Wi-Fi-antenne, 3 x M.2 klemmer, m.2 screw/standoff-sæt, kabelmærkat
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, MSI Center, Intel Extreme Tuning Utility, MSI CPU-Z, Norton 360 Deluxe (60 dages prøvetid), AIDA64 Extreme - MSI Edition, Adobe Creative Cloud (gratis prøve), Adobe Acrobat Reader
Overensstemmelsesstandarder
DisplayPort 1.4, FIPS, FISMA
Bredde
30.5 cm
Dybde
24.4 cm
