Varenummer: 3130807

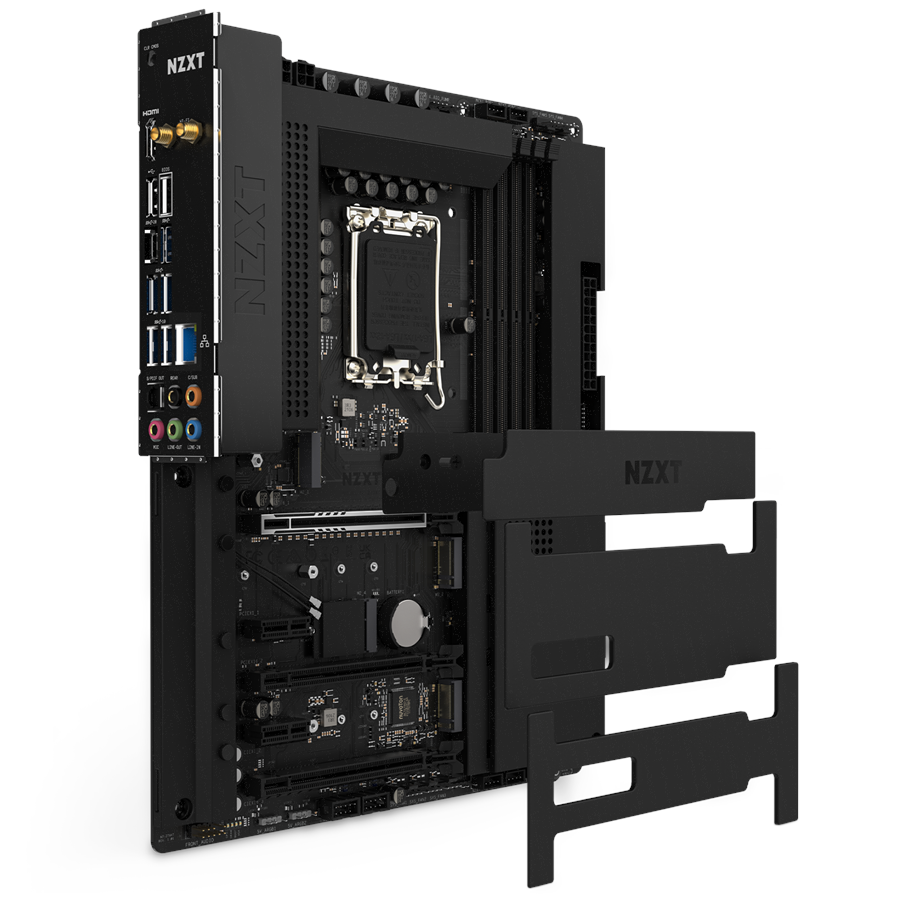

NZXT N7 Z790 Black Bundkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX
Bundkort, ATX, Intel LGA1700 Socket, Intel Z790, 1 x PCI-Express 5.0 x16 & 1 x PCI-Express 4.0 x16, Dual DDR5-5600 - 4 x DIMM slots, 4 x SATA-600 / 3 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Gen 2 Type A & C, 2 x HDMI 2.1 tilslutning, Realtek RTL8125BG 2.5 Gigabit LAN, WiFi 6E (802.11ax) & Bluetooth 5.2, Intel Xe Graphics understøttelse (CPU påkrævet), Realtek ALC1220 HD Audio (8-kanaler)
2.298,00 kr.
1.838,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, leveringstiden kan ikke oplyses
Discover the power of advanced computing with the NZXT motherboard, designed to elevate your system's performance and connectivity. This motherboard is engineered to support 12th and 13th Generation Intel Core processors, ensuring compatibility with high-performance CPUs. With DDR5 SDRAM support and speeds up to 6000 MHz (O.C.), it offers rapid data processing capabilities for demanding applications and gaming.
Experience crystal-clear sound with High Definition Audio, supported by an 8-channel Realtek ALC1220 audio codec, enhancing your multimedia experience. The motherboard also boasts a variety of storage options, including M.2 sockets and Serial ATA-600 (RAID), providing flexibility and high-speed data access.
Stay connected with multiple networking options, including 2.5 Gigabit Ethernet, Bluetooth 5.2, and Wi-Fi 6E, ensuring you're always online with fast and reliable connections. Whether you're building a new PC or upgrading an existing one, this motherboard offers a solid foundation for a high-performance system.
Experience crystal-clear sound with High Definition Audio, supported by an 8-channel Realtek ALC1220 audio codec, enhancing your multimedia experience. The motherboard also boasts a variety of storage options, including M.2 sockets and Serial ATA-600 (RAID), providing flexibility and high-speed data access.
Stay connected with multiple networking options, including 2.5 Gigabit Ethernet, Bluetooth 5.2, and Wi-Fi 6E, ensuring you're always online with fast and reliable connections. Whether you're building a new PC or upgrading an existing one, this motherboard offers a solid foundation for a high-performance system.
Producent
Varenummer
3130807
Model
N7-Z79XT-B1
Ean
5056547202952
Til producentens hjemmeside
Produktbeskrivelse
NZXT N7 Z790 - bundkort - ATX - LGA1700 sokkel - Z790
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet
Generelt
Produkttype
Bundkort - ATX
Chipsættype
Intel Z790
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Understøttet RAM
Maks. størrelse
128 GB
Teknologi
DDR5
Bus Clock
6000 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8125BG
Netværks interfaces
2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
1 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
4 x DIMM 288-pins
1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
1 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
PCIe 4.0 -stikforbindelser: 3 x M.2
PCIe 4.0 -stikforbindelser: 3 x M.2
Interface
1 x HDMI
1 x USB-C 3.2 Gen2x2
2 x USB 3.2 Gen 2
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x LAN (2.5Gigabit Ethernet)
2 x antenne
1 x SPDIF-ud
1 x USB-C 3.2 Gen2x2
2 x USB 3.2 Gen 2
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x LAN (2.5Gigabit Ethernet)
2 x antenne
1 x SPDIF-ud
Interne interfaces
1 x USB-C 3.2 Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
Egenskaber
Hardware egenskaber
Water Pump Header, 16+1+2 Phase Power Design, Dr.MOS MOSFET, præmonteret I/O-skjold
Diverse
Udstyr inkluderet
3 x M.2 skruer, standoff til M.2 sokkel, 2 x Wi-Fi-antenne
Medfølgende ledninger
4 x Seriel ATA kabel
