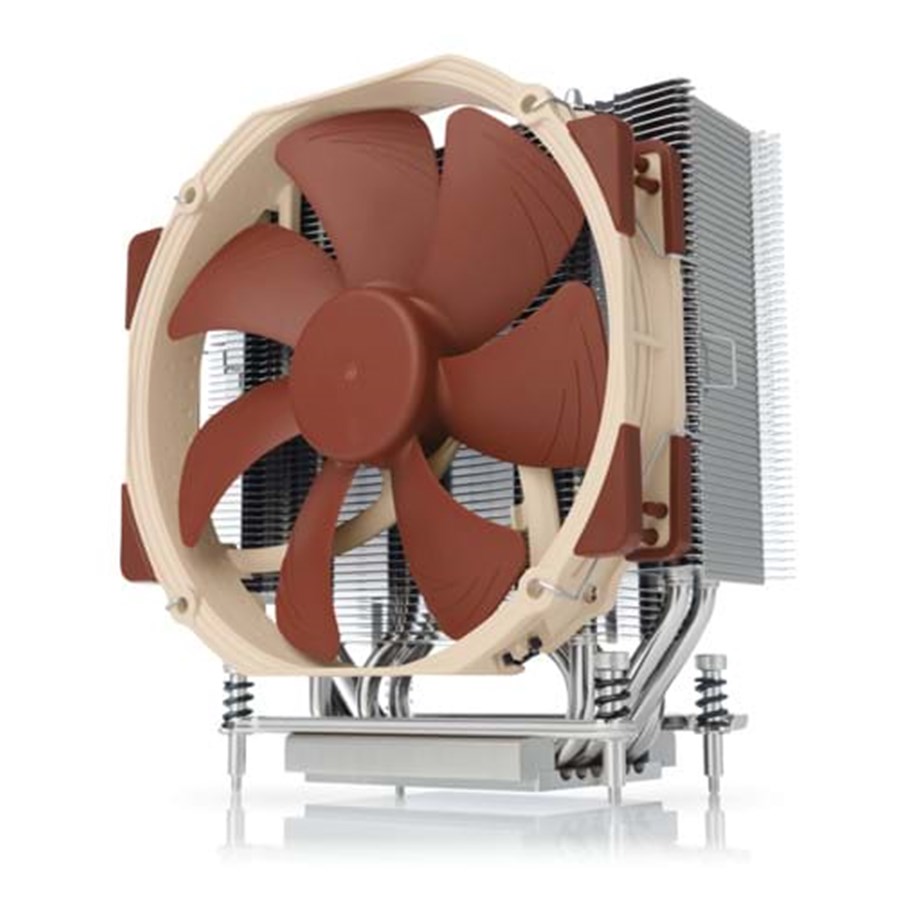

Noctua NH-U14S TR4-SP3 - CPU Luftkøler - Max 25 dBA

General Notes and warnings Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base. it cannot be used on any other sockets and is incompatible with Noctuas standard mounting kits. Cooler Specification Socket compatibility AMD TR4 & SP3 Height (without fan) 165 mm Width (without fan) 150 mm Depth (without fan) 52 mm Height (with fan) 165 mm Width (with fan) 150 mm Depth (with fan) 78 mm Weight (without fan) 865 g Weight (with fan/s) 1030 g Material Copper (base and heat-pipes). aluminium (cooling fins). soldered joints & nickel plating Max. TDP see TDP guide Fan compatibility 140x150x25 (with 120mm mounting holes). 140x140x25 (with 120mm mounting holes). 120x120x25 Scope of Delivery NF-A15 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2? mounting kit Anti-vibration pads and fan-clips for second NF-A15 (optional) Noctua Metal Case-Badge FAN Specification Model Noctua NF-A15 PWM Bearing SSO2 Max. Rotational Speed (+/- 10%) 1500 RPM Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM Min. Rotational Speed (PWM. +/-20%) 300 RPM Max. Airflow 140.2 m³/h Max. Airflow with L.N.A. 115.5 m³/h Max. Acoustical Noise 24.6 dB(A) Max. Acoustical Noise with L.N.A. 19.2 dB(A) Input Power 1.56 W Voltage Range 12 V MTTF > 150.000 h
