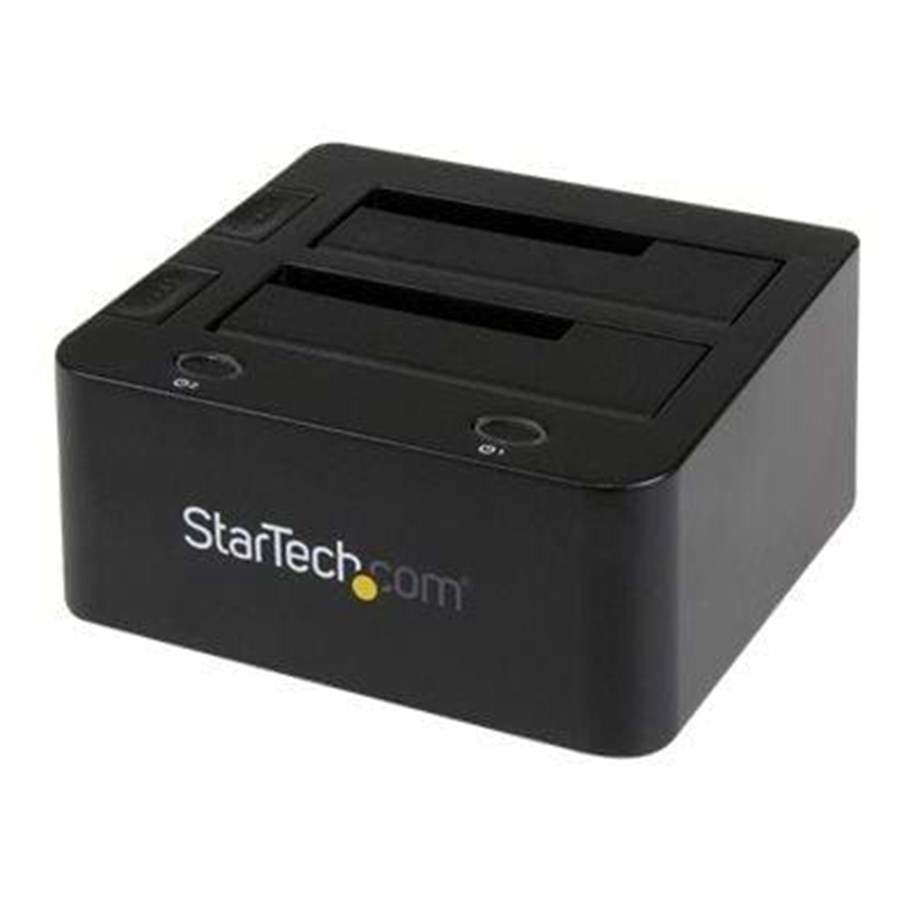

StarTech.com Universal Dock for 2.5/35in SATA & IDE HDD
USB 3.0 Dock for 2.5"/3.5" HDDs/SSDs with UASP (UNIDOCKU33), Lagringskontrol, 2.5", 3.5", ATA / SATA 6Gb/s, 6 Gbit/s, USB 3.0, sort, for P/N: SVA12M5NA
908,00 kr.
726,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 3 dages levering
Oplader medfølger
Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Producent
Varenummer
2476386
Model
UNIDOCKU33
Ean
0065030859813
Til producentens hjemmeside
Opbevaringsmedietype
HDD, SSD
Grænseflade til lagerdisk
Parallel ATA (IDE), SATA, Serial ATA II, Serial ATA III
Understøttede lagerdisk størrelser
2.5,3.5"
Antal understøttede lagerdiske
2
Maksimal lagerkapacitet
6 TB
Værtsgrænseflade
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Antal USB 3.2 Gen 1 (3.1 Gen 1) -porte
1
DC-in-stik
Ja
Produktfarve
Sort
Materiale
Plast
Maksimal dataoverførselshastighed
5 Gbit/sek.
Hot-swap
Ja
Plug and play
Ja
Understøtter RAID
Ingen
LED-indikatorer
Aktivitet, Strøm
Understøtter UASP
Ja
Certificering
CE, FCC
Indbygget ventilator
Ingen
Vekselstrømsindgangsspænding
110-240 V
Indgangsstrøm
1.3 A
Udgangsspænding
12 V
Udgangsstrøm
3 A
Strømstiktype
Type M
Bredde
130 mm
Dybde
147 mm
Højde
70 mm
Vægt
500 g
Pakkebredde
123 mm
Pakkedybde
187 mm
Pakkehøjde
214 mm
Pakkevægt
1 kg
AC-adapter inkluderet
Ja
Kabler inkluderet
USB
Brugervejledning
Ja
Driftstemperatur (T-T)
5 - 80 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
8 - 90%
Chipsæt
JMicron - JMS561U, JMD330
Gennemsnitstid mellem fejl (MTBF)
30000 t
Compliance-certifikater
RoHS
Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
210 mm
Hovedkassens længde (udvendigt)
625 mm
Hovedkassen højde (udvendigt)
450 mm
Produkter pr. hovedkasse (udvendigt)
10 stk
Diskdrev
Opbevaringsmedietype
HDD, SSD
Grænseflade til lagerdisk
Parallel ATA (IDE), SATA, Serial ATA II, Serial ATA III
Understøttede lagerdisk størrelser
2.5,3.5"
Antal understøttede lagerdiske
2
Maksimal lagerkapacitet
6 TB
Porte & Grænseflader
Værtsgrænseflade
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Antal USB 3.2 Gen 1 (3.1 Gen 1) -porte
1
DC-in-stik
Ja
Funktioner
Produktfarve
Sort
Materiale
Plast
Maksimal dataoverførselshastighed
5 Gbit/sek.
Hot-swap
Ja
Plug and play
Ja
Understøtter RAID
Ingen
LED-indikatorer
Aktivitet, Strøm
Understøtter UASP
Ja
Certificering
CE, FCC
Nedkøling
Indbygget ventilator
Ingen
Strømstyring
Vekselstrømsindgangsspænding
110-240 V
Indgangsstrøm
1.3 A
Udgangsspænding
12 V
Udgangsstrøm
3 A
Strømstiktype
Type M
Vægt & størrelser
Bredde
130 mm
Dybde
147 mm
Højde
70 mm
Vægt
500 g
Emballeringsdata
Pakkebredde
123 mm
Pakkedybde
187 mm
Pakkehøjde
214 mm
Pakkevægt
1 kg
Emballage indhold
AC-adapter inkluderet
Ja
Kabler inkluderet
USB
Brugervejledning
Ja
Driftsbetingelser
Driftstemperatur (T-T)
5 - 80 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
8 - 90%
Andre funktioner
Chipsæt
JMicron - JMS561U, JMD330
Gennemsnitstid mellem fejl (MTBF)
30000 t
Compliance-certifikater
RoHS
Logistik data
Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
210 mm
Hovedkassens længde (udvendigt)
625 mm
Hovedkassen højde (udvendigt)
450 mm
Produkter pr. hovedkasse (udvendigt)
10 stk
