Varenummer: 3017179

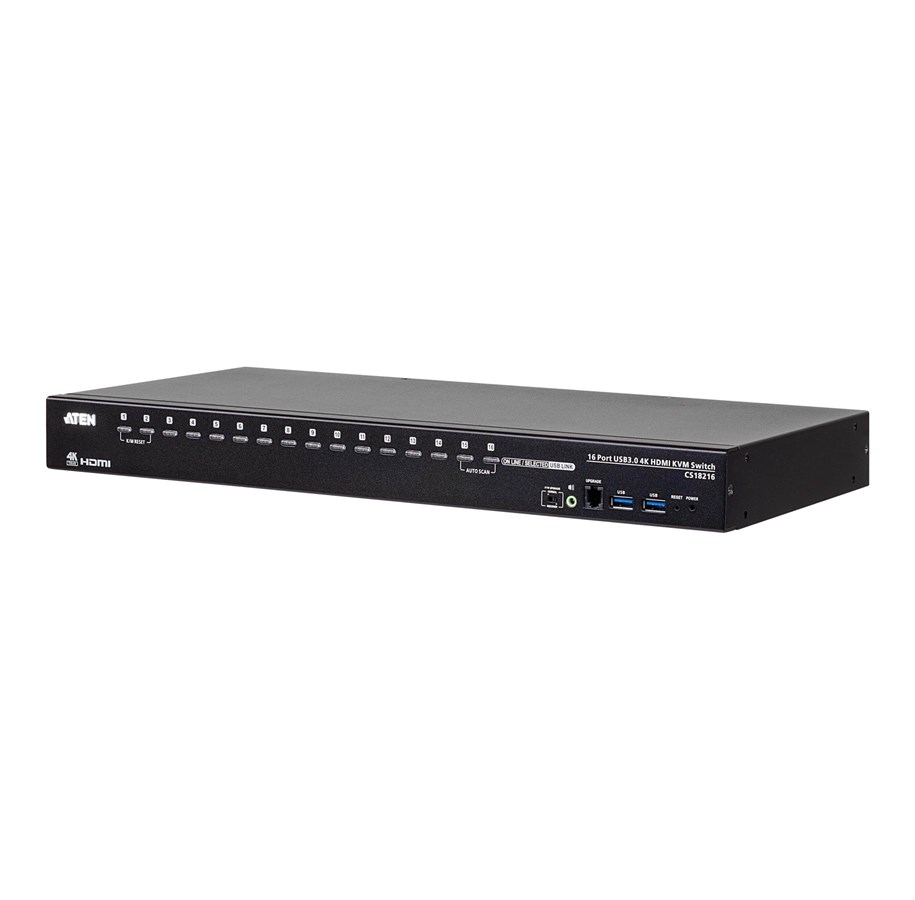

ATEN PRZELACZNIK KVM CS18216 16PORT USB HDMI 4K US

KVM / audio / USB switch, 16 x KVM / audio / USB, 1 lokalbruger, monterbar på stativ, DC strøm

11.098,00 kr. 8.878,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 1-2 måneders levering

The ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 16 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18216 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.To meet the needs of easy expansion and flexibility, the CS18216 can control up to 256 computers by cascading to two levels for a single console. Furthermore, the CS18216 supports multi-display function by stacking up to eight CS18216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.With two patented ATEN technologies - Video DynaSync and EDID Expert, the CS18216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.Besides, the CS18216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS18216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS18216 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking, such as enterprise, government, production, telecom, finance, media, content provider, video surveillance, etc.

Producent
Varenummer
3017179
Model
CS18216-AT-G
Ean
4710469340703
Til producentens hjemmeside
Antal kontrollerede computere
16
Tastatur porttype
USB
Mus porttype
USB
Video porttype
HDMI
Konsol porte
3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A
Antal HDMI-porte
16
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte
16
Antal konsol USB porte
2
USB stik
Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte
2
USB-stik type
USB Type-A, USB Type-B
Lydforbindelse
Ja
Udgange til hovedtelefoner
17
Antal mikrofon-indgange
1
DC-in-stik
Ja
HD-type
4K Ultra HD
Maksimal opløsning
4096 x 2160 pixel
Video båndbredde
60 Hz
Skanningsinterval
1,5,255 sek./side
Produktfarve
Sort
Husmateriale
Metal
LED-indikatorer
Ja
Trykknap
Ja
Genvejstaster
Ja
Indbygget skærm
Ingen
Strømkilde
DC
Indgangsspænding
12 V
Strømforbrug (typisk)
13,12 W
Understøttede Windows-operativsystemer
Ja
Understøttede Linux-operativsystemer
Ja
Understøttede Mac-operativsystemer
Ja
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%
Relativ luftfugtighed ved opbevaring (H-H)
0 - 80%
Bredde
432,4 mm
Dybde
214,3 mm
Højde
44 mm
Vægt
4,37 kg
Pakkebredde
133 mm
Pakkedybde
499 mm
Pakkehøjde
324 mm
Pakkevægt
5,25 kg
Hurtig installationsvejledning
Ja
Brugervejledning
Ja
Ydre emballage nettovægt
13,1 kg
Harmoniseret systemkode (HS)
85176200
Hovedkassens bredde (udvendigt)
427 mm
Hovedkassens længde (udvendigt)
519 mm
Hovedkassen højde (udvendigt)
348 mm
Hovedkassens bruttovægt (udvendigt)
16,9 kg
Produkter pr. hovedkasse (udvendigt)
3 stk

Porte & Grænseflader

Antal kontrollerede computere
16
Tastatur porttype
USB
Mus porttype
USB
Video porttype
HDMI
Konsol porte
3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A
Antal HDMI-porte
16
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte
16
Antal konsol USB porte
2
USB stik
Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte
2
USB-stik type
USB Type-A, USB Type-B
Lydforbindelse
Ja
Udgange til hovedtelefoner
17
Antal mikrofon-indgange
1
DC-in-stik
Ja

Præstation

HD-type
4K Ultra HD
Maksimal opløsning
4096 x 2160 pixel
Video båndbredde
60 Hz
Skanningsinterval
1,5,255 sek./side

Design

Produktfarve
Sort
Husmateriale
Metal
LED-indikatorer
Ja
Trykknap
Ja
Genvejstaster
Ja

Display

Indbygget skærm
Ingen

Strømstyring

Strømkilde
DC
Indgangsspænding
12 V
Strømforbrug (typisk)
13,12 W

Systemkrav

Understøttede Windows-operativsystemer
Ja
Understøttede Linux-operativsystemer
Ja
Understøttede Mac-operativsystemer
Ja

Driftsbetingelser

Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-20 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%
Relativ luftfugtighed ved opbevaring (H-H)
0 - 80%

Vægt & størrelser

Bredde
432,4 mm
Dybde
214,3 mm
Højde
44 mm
Vægt
4,37 kg

Emballeringsdata

Pakkebredde
133 mm
Pakkedybde
499 mm
Pakkehøjde
324 mm
Pakkevægt
5,25 kg

Emballage indhold

Hurtig installationsvejledning
Ja
Brugervejledning
Ja

Logistik data

Ydre emballage nettovægt
13,1 kg
Harmoniseret systemkode (HS)
85176200
Hovedkassens bredde (udvendigt)
427 mm
Hovedkassens længde (udvendigt)
519 mm
Hovedkassen højde (udvendigt)
348 mm
Hovedkassens bruttovægt (udvendigt)
16,9 kg
Produkter pr. hovedkasse (udvendigt)
3 stk
