Varenummer: 3423136
Lindy - transmitter and receiver - video/audio/infrared/serial extender - HDBaseT 2.0
Sender og modtager, video/audio/infrarød/seriel forlænger, HDBaseT 2.0, op til 100 m
8.799,00 kr.
7.039,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 3 dages levering
Oplader medfølger

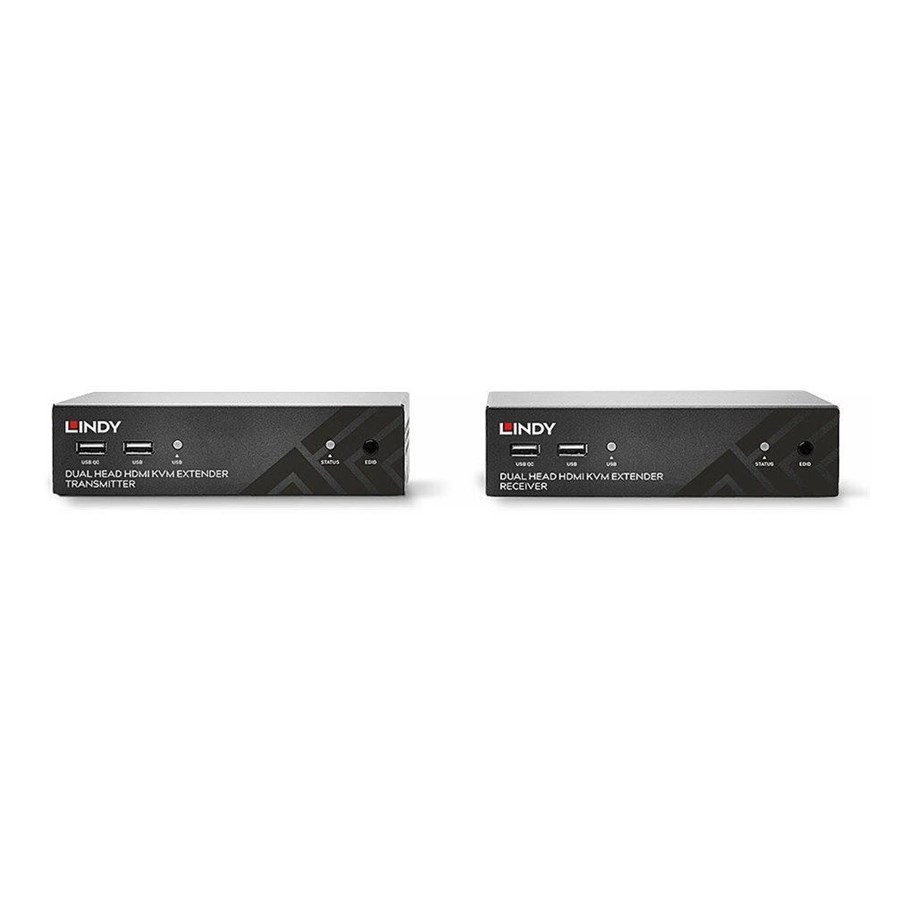

The Lindy 100 m Cat.6 Dual Head HDMI, USB and RS-232 KVM Extender is a powerful, versatile solution for extending and controlling a dual head workstation up to distances of 100 m (328.08 feet) over a single Cat.6 cable using HDBaseT. It's utilization of the HDBaseT 2.0 specification allows for the transmission of audio, video and various control methods with just one connection between the transmitter and receiver units. The use of two HDMI displays at resolutions up to 1920 x 1080 @ 60 Hz and USB HID's in a convenient remote location creates a super effective productivity console. This gives users the ability to fully operate a high-performance PC which is stored in a convenient location, helping to meet the requirements of modern offices as multiple applications can be open and sharing data simultaneously. Up to 7.1 Digital and Stereo analog can be passed through from the source to standalone amplifiers, speakers and headphones to ensure any relevant audible information or data is understood by the user.Serial and Bi-directional IR add to this extender's comprehensive suite of control methods. Source and display devices can be controlled at either point of a configuration using an IR remote control, whilst serial input and control devices can be used at the remote console. In applications which rely heavily on the uptime of source devices such as medical environments or manufacturing, the Lindy 100 m Cat.6 Dual Head KVM extender can be used to ensure PCs or servers can be locked in a secure location to prevent any unauthorized access or tampering of equipment and protect them from major power outages, fires or water leaks. It's reliable HDBaseT connection means users can be confident that control will always be maintained over the source device even in the most demanding environments.
Producent
Varenummer
3423136
Model
39374
Ean
4002888393744
Til producentens hjemmeside
Produktbeskrivelse
LINDY - sender og modtager - video/audio/infrarød/seriel forlænger - HDBaseT 2.0
Enhedstype
Video/audio/infrarød/seriel forlænger
Model
Ekstern
Lokalisering
Europa, United Kingdom, USA, Australien
Dataoverførselshastighed
8.92 Gbps
Dataforbindelsesprotokol
HDBaseT 2.0
Maks. overføringsafstand
100 m
Generelt
Enhedstype
Video/audio/infrarød/seriel forlænger
Model
Ekstern
Farve
Sort
Lokalisering
Europa, United Kingdom, USA, Australien
Netværk
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
HDBaseT 2.0
Dataoverførselshastighed
8.92 Gbps
Maksimum opløsning
1920 x 1080 @ 60 Hz
Maks. overføringsafstand
100 m
Statusindikatorer
USB, status
Egenskaber
7,1 kanals audiosupport, metalkabinet, EDID-kopiknap
Overensstemmelsesstandarder
HDCP 1.4
Ekspansion / Konnektivitet
Interface
2 x HDMI
4 x USB - Type A
1 x RS-232 (to-vejs) - DB-9
1 x IR (output) - mini jack
1 x IR (input) - mini jack
1 x SPDIF - TOSLINK
1 x audio-linje ud - mini jack
1 x mikrofon - mini jack
1 x mini-USB - Type B
4 x USB - Type A
1 x RS-232 (to-vejs) - DB-9
1 x IR (output) - mini jack
1 x IR (input) - mini jack
1 x SPDIF - TOSLINK
1 x audio-linje ud - mini jack
1 x mikrofon - mini jack
1 x mini-USB - Type B
Diverse
Inkluderet tilbehør
8 gummifødder
Medfølgende ledninger
1 x mini-USB til USB-kabel - 1 m
2 x IR-modtagerkabel - 1.5 m
2 x IR transmitter-kabel - 1.5 m
2 x IR-modtagerkabel - 1.5 m
2 x IR transmitter-kabel - 1.5 m
Overensstemmelsesstandarder
RoHS, REACH, FCC Part 15 B, WEEE
Effekt
Strømenhed
Ekstern strømforsyning
Antal installeret
2
Maks. antal understøttet
2
Mål og vægt
Dimensioner (B x D x H) / Vægt detaljer
Sender: 15.6 cm x 13 cm x 4.2 cm / 720 g
Modtager: 15.6 cm x 13 cm x 4.2 cm / 720 g
Modtager: 15.6 cm x 13 cm x 4.2 cm / 720 g
Mål & vægt (forsendelse)
Bredde ved forsendelse
47 cm
Dybde ved forsendelse
22 cm
Højde ved forsendelse
6.7 cm
Vægt ved forsendelse
2.5 kg
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
65 °C
Fugtighedsgrad ved brug
0 - 90% (ikke-kondenserende)
