Varenummer: 3014256

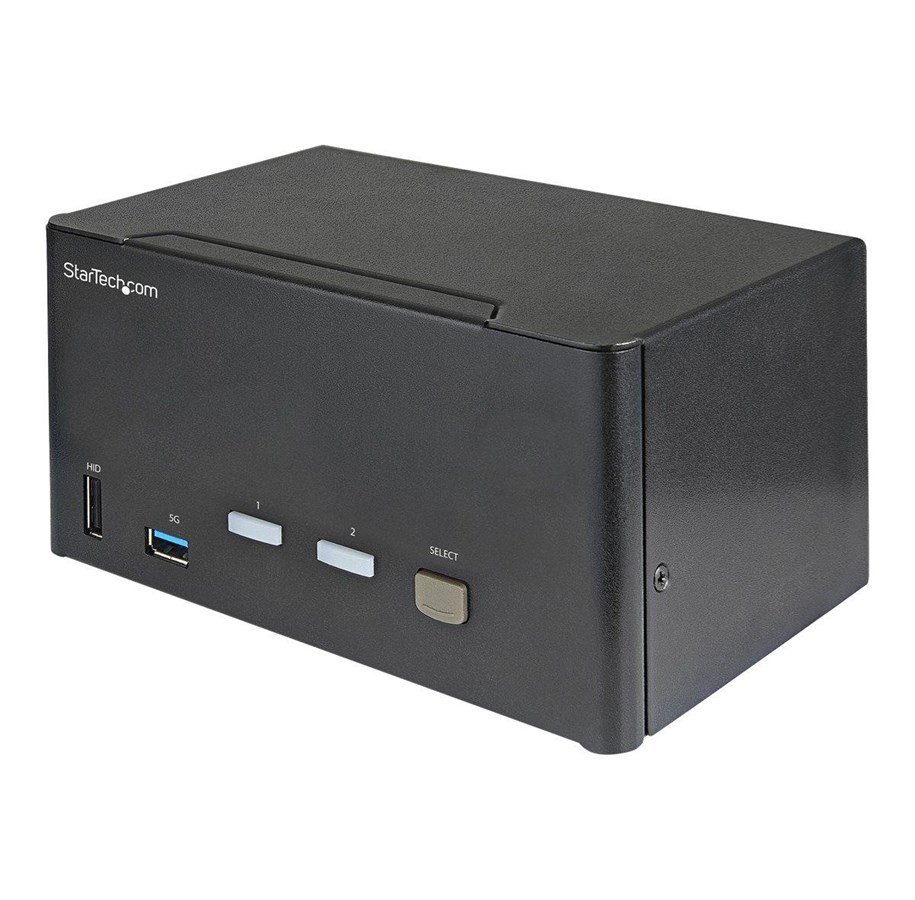

StarTech.com SV231TDPU34K / Keyboard/Video/Mouse Switch KVM
Keyboard/Video/Mouse Switch, KVM / audio-switch, 2 x KVM / audio, desktop, TAA-kompatibel
3.862,00 kr.
3.089,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 3 dages levering
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
Producent
Varenummer
3014256
Model
SV231TDPU34K
Til producentens hjemmeside
Antal kontrollerede computere
2
Tastatur porttype
USB
Mus porttype
USB
Video porttype
DisplayPort
Konsol porte
3ˌ5 mm hovedtelefon, DisplayPort, USB A
Antal DisplayPorts
9
DisplayPort-version
1.2
Antal konsol USB porte
4
USB stik
Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte
2
Lydforbindelse
Ja
Udgange til hovedtelefoner
3
DC-in-stik
Ja
HD-type
4K Ultra HD
Maksimal opløsning
3840 x 2160 pixel
Video båndbredde
60 Hz
Skanningsinterval
3,8,15,30 sek./side
HDCP
Ja
Daisy kæde
Ingen
Lyd kanaler
5.1
Antal understøttede skærme
3
Produktfarve
Sort
Husmateriale
Stål
LED-indikatorer
Ja
Trykknap
Ja
Genvejstaster
Ja
Gennemsnitstid mellem fejl (MTBF)
156000 t
Certificering
CE, RoHS, FCC
Indbygget skærm
Ingen
Skærmvisning (OSD)
Ingen
Indgangsspænding
100 - 240 V
Indgangsstrøm
1 A
Udgangsspænding
12 V
Udgangsstrøm
3 A
Strømforbrug (typisk)
36 W
Strømstiktype
Type M
Kompatible strømplug typer
AU, EU, JP, UK, US
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-10 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%
Bredde
160 mm
Dybde
100 mm
Højde
98 mm
Vægt
850 g
Pakkebredde
238 mm
Pakkedybde
189 mm
Pakkehøjde
91 mm
Hurtig installationsvejledning
Ja
Gummifødder
Ja
Harmoniseret systemkode (HS)
85176200
Hovedkassens bredde (udvendigt)
397 mm
Hovedkassens længde (udvendigt)
317 mm
Hovedkassen højde (udvendigt)
280 mm
Produkter pr. hovedkasse (udvendigt)
6 stk
IP kontrol
Ingen
Porte & Grænseflader
Antal kontrollerede computere
2
Tastatur porttype
USB
Mus porttype
USB
Video porttype
DisplayPort
Konsol porte
3ˌ5 mm hovedtelefon, DisplayPort, USB A
Antal DisplayPorts
9
DisplayPort-version
1.2
Antal konsol USB porte
4
USB stik
Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte
2
Lydforbindelse
Ja
Udgange til hovedtelefoner
3
DC-in-stik
Ja
Præstation
HD-type
4K Ultra HD
Maksimal opløsning
3840 x 2160 pixel
Video båndbredde
60 Hz
Skanningsinterval
3,8,15,30 sek./side
HDCP
Ja
Daisy kæde
Ingen
Lyd kanaler
5.1
Antal understøttede skærme
3
Design
Produktfarve
Sort
Husmateriale
Stål
LED-indikatorer
Ja
Trykknap
Ja
Genvejstaster
Ja
Gennemsnitstid mellem fejl (MTBF)
156000 t
Certificering
CE, RoHS, FCC
Display
Indbygget skærm
Ingen
Skærmvisning (OSD)
Ingen
Strømstyring
Indgangsspænding
100 - 240 V
Indgangsstrøm
1 A
Udgangsspænding
12 V
Udgangsstrøm
3 A
Strømforbrug (typisk)
36 W
Strømstiktype
Type M
Kompatible strømplug typer
AU, EU, JP, UK, US
Driftsbetingelser
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-10 - 60 °C
Relativ luftfugtighed ved drift (H-H)
0 - 80%
Vægt & størrelser
Bredde
160 mm
Dybde
100 mm
Højde
98 mm
Vægt
850 g
Emballeringsdata
Pakkebredde
238 mm
Pakkedybde
189 mm
Pakkehøjde
91 mm
Emballage indhold
Hurtig installationsvejledning
Ja
Gummifødder
Ja
Logistik data
Harmoniseret systemkode (HS)
85176200
Hovedkassens bredde (udvendigt)
397 mm
Hovedkassens længde (udvendigt)
317 mm
Hovedkassen højde (udvendigt)
280 mm
Produkter pr. hovedkasse (udvendigt)
6 stk
Andre funktioner
IP kontrol
Ingen
