Varenummer: 2986093

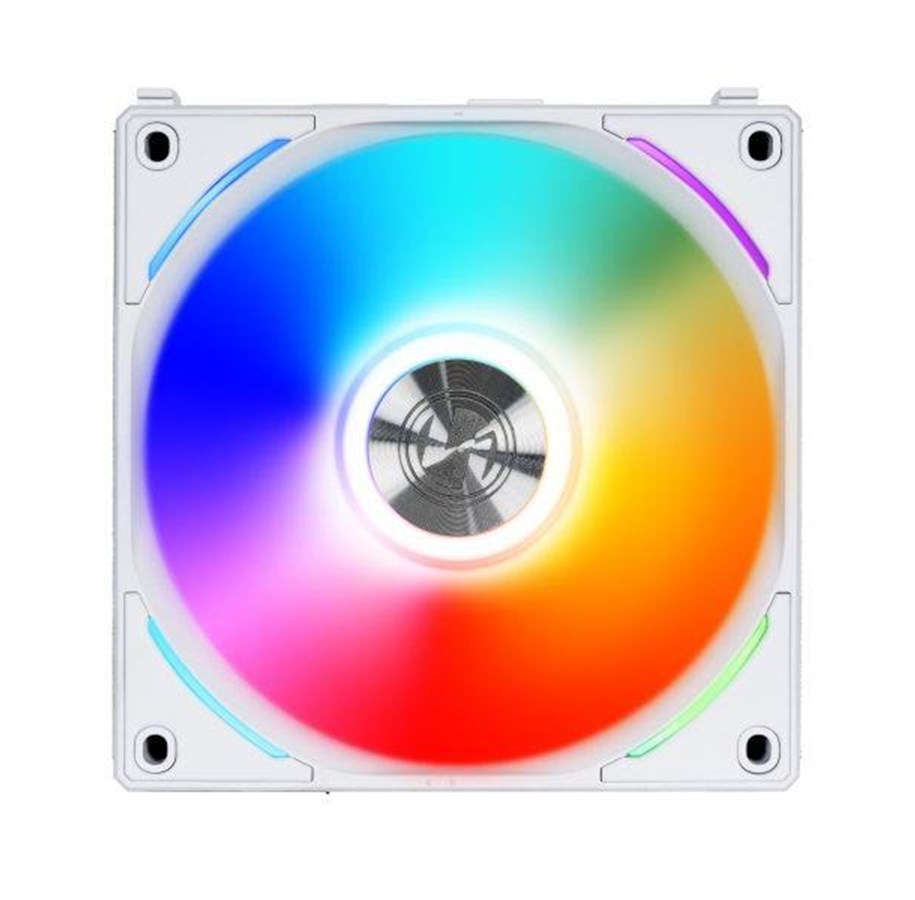

Lian Li UNI FAN AL120 - Kabinet køler - 120mm - Hvid med RGB - 28 dBA

Kabinet køler, 120mm x 120mm x 25mm (højde x bredde x dybde), støjniveau: 17 - 28.3 dBa, lufttryk max 64.5 CFM, max statisk luftryk 2.62 mmH2O, omdrejningshastighed: 800 - 1900 ±10% RPM, PWM kontrolleret, lejre type: Fluid Dynamic Bearing (FDB), bundkort tilslutning: 4-pins & RGB tilslutning: 3-pins (5 volt), addressable RGB LED lys, kan sammenkobles (daisy-chain): ja - via stik på rammen, kræver særlig hub: Lian Li UNI HUB, kontrolleret af: ASUS AURA / Asrock Polychrome Sync / Gigabyte Fusion / MSI Mystic Light, farve: hvid med RGB.

• Daisy-chained with less cable clutter

• Lian Li L-Connect software to control RGB effects

• Addressable RGB for cool lighting effects with motherboard software and synced with other RGB products

På lager
259,00 kr. 207,20 kr. ekskl. moms
Gratis fragt (privatkunde)
6 stk. På lager - 1-2 dages levering

MODULARITY FAN
Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables.

BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).

ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.

Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.

L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.

ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.

Fan Speed: 800 RPM – 1900 RPM
Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed.

SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.

CONTROL UP TO 16 FANS IN ONE GO
The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.

MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.

DAZZLING AT ALL ANGLES
Brushed aluminum trim with reflecting edges on both sides of the fan frame.

Rear metallic medallion at the center with cables hidden in X-style fan support.

Aesthetic details considered for both intake and outtake mounting in the case.

Producent
Varenummer
2986093
Model
UF-AL120-1W
Ean
4718466010155
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
800 rpm
Omdrejningshastighed (maks.)
1900 rpm
Støjniveau (lav hastighed)
17 dB
Støjniveau (høj hastighed)
28,3 dB
Maksimal luftstrøm
64,5 kubikfod/min.
Maksimalt lufttryk
2,62 mmH2O
Lejetype
Fluid Dynamic Bearing (FDB)
Ventilatorlejeteknologi
Fluid Dynamic Bearing (FDB)
Antal pr. pakke
1 stk
Produktfarve
Hvid
Materiale
Aluminium, Polybutylenterephthalat (PBT), Polykarbonat (PC)
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Strømforbrug (typisk)
5,94 W
Ventilatorstrøm
0,22 A
Bredde
120 mm
Dybde
120 mm
Højde
25 mm
Pakketype
Hængende boks
Skruer inkluderet
Ja
RGB-controller inkluderet
Ja

Præstation

Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
800 rpm
Omdrejningshastighed (maks.)
1900 rpm
Støjniveau (lav hastighed)
17 dB
Støjniveau (høj hastighed)
28,3 dB
Maksimal luftstrøm
64,5 kubikfod/min.
Maksimalt lufttryk
2,62 mmH2O
Lejetype
Fluid Dynamic Bearing (FDB)
Ventilatorlejeteknologi
Fluid Dynamic Bearing (FDB)
Antal pr. pakke
1 stk

Design

Produktfarve
Hvid
Materiale
Aluminium, Polybutylenterephthalat (PBT), Polykarbonat (PC)
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7

Strømstyring

Strømforbrug (typisk)
5,94 W
Ventilatorstrøm
0,22 A

Vægt & størrelser

Bredde
120 mm
Dybde
120 mm
Højde
25 mm

Emballage indhold

Pakketype
Hængende boks
Skruer inkluderet
Ja
RGB-controller inkluderet
Ja
