Varenummer: 2661526

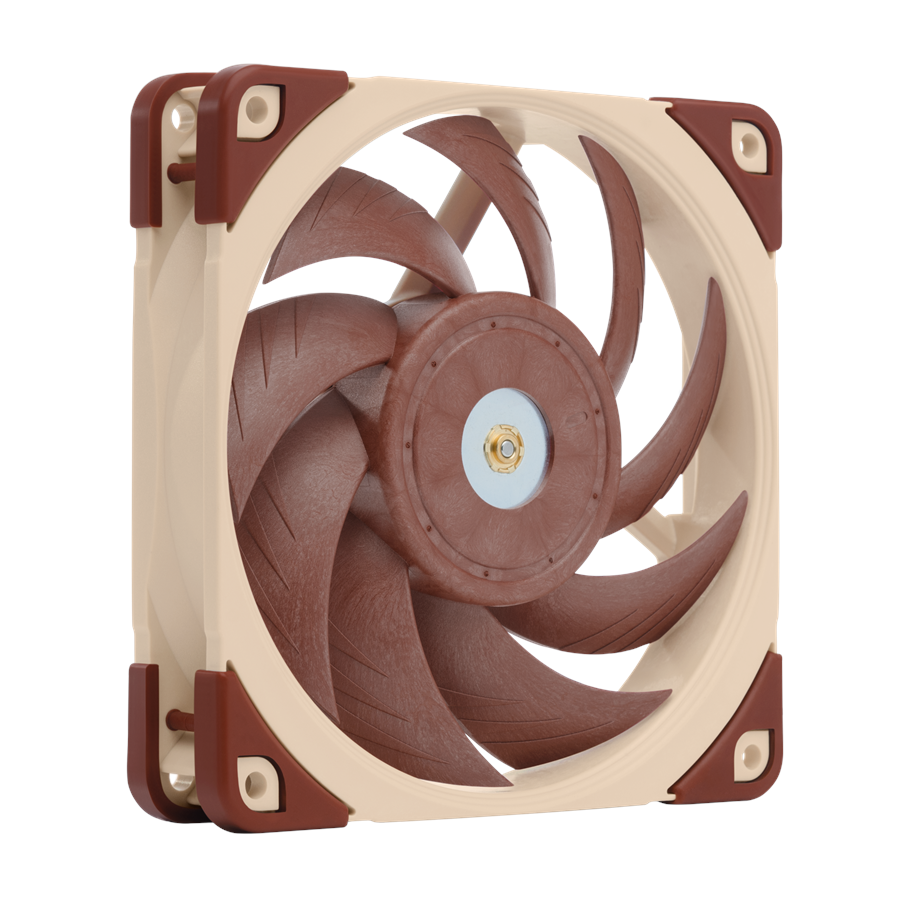

Noctua NF-A12x25 PWM - Kabinet køler - 120mm - Brun - 22 dBA
Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: 18.8 - 22.06 dBA, Air flow: max 60.1 CFM, blæser RPM: 450 - 2000 ±10%, PWM kontrolleret, 4 pins bundkort tilslutning, brun
På lager
266,00 kr.
212,80 kr. ekskl. moms
Gratis fragt (privatkunde)
2 stk.
På lager - 1-2 dages levering
The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Producent
Varenummer
2661526
Model
NF-A12X25 PWM
Ean
9010018100396
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
450 rpm
Omdrejningshastighed (maks.)
2000 rpm
Rotationshastighed med LNA (maks.)
1700 rpm
Støjniveau (høj hastighed)
22,6 dB
Støvniveau med LNA (maks.)
18,8 dB
Luftstrøm
102,1 m³/t
Luftgennemstrømning med LNA (maks.)
84,5 m³/t
Minimum lufttryk
1,65 mmH2O
Maksimalt lufttryk
2,34 mmH2O
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Produktfarve
Brun
Materiale
Flydende krystalpolymerer (LCP)
Ventilatorstik
4-polet
Strømforbrug (typisk)
1,68 W
Spænding
12 V
Strøm (maks.)
0,14 A
Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Middeltid til fejl (MTTF)
150000 t
Harmoniseret systemkode (HS)
84733080
Præstation
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
450 rpm
Omdrejningshastighed (maks.)
2000 rpm
Rotationshastighed med LNA (maks.)
1700 rpm
Støjniveau (høj hastighed)
22,6 dB
Støvniveau med LNA (maks.)
18,8 dB
Luftstrøm
102,1 m³/t
Luftgennemstrømning med LNA (maks.)
84,5 m³/t
Minimum lufttryk
1,65 mmH2O
Maksimalt lufttryk
2,34 mmH2O
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Design
Produktfarve
Brun
Materiale
Flydende krystalpolymerer (LCP)
Ventilatorstik
4-polet
Strømstyring
Strømforbrug (typisk)
1,68 W
Spænding
12 V
Strøm (maks.)
0,14 A
Vægt & størrelser
Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Andre funktioner
Middeltid til fejl (MTTF)
150000 t
Logistik data
Harmoniseret systemkode (HS)
84733080
