Varenummer: 2449114

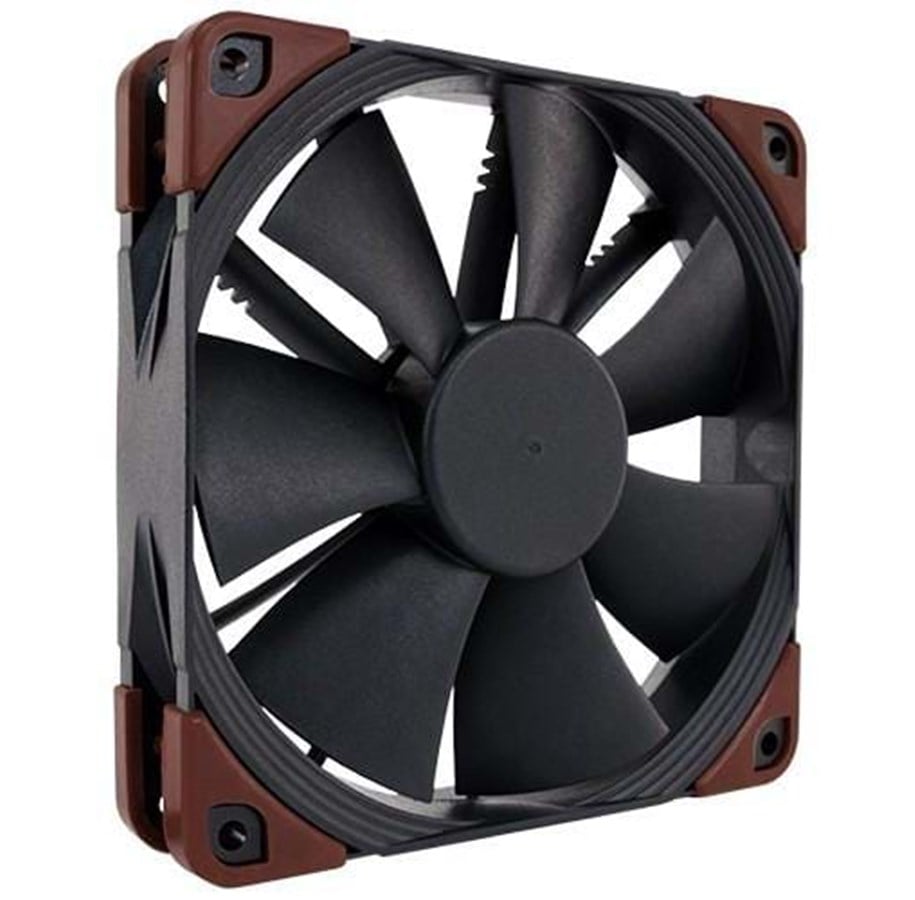

Noctua NF-F12 iPPC-2000 - Kabinet køler - 120mm - Sort - 29 dBA

Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: 29.7 dBA, Air flow: 71.7 CFM, blæser RPM: 2000 ±10%, 3 pins bundkort tilslutning, sort

Læs mere
259,00 kr. 207,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 13-14 dages levering

Award-winning NF-F12 design

Award-winning NF-F12 design

Having received more than 150 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
2000rpm industrialPPC version

2000rpm industrialPPC version

Thanks to its elevated 2000rpm top speed, the NF-F12 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
Three-phase motor design

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.
Class-leading energy efficiency

Class-leading energy efficiency

While the standard NF-F12 is one of the most energy efficient 1500rpm 120mm fans on the market, the industrialPPC version's three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.
Fibre-glass reinforced polyamide construction

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.
Certified IP52 water- and dust protection

Certified IP52 water- and dust protection

Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.
Focused Flow™ frame

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches

Varying Angular Distance and Vortex Control Notches

The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf™ Impeller

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing

SSO2 Bearing

The NF-F12 industrialPPC features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 industrialPPC sports a CNC milled bearing shell made entirely from brass.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 industrialPPC features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.
Customisable for industry clients

Customisable for industry clients

For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!

Kabinet Køler

Producent
Varenummer
2449114
Model
NF-F12 iPPC-2000
Ean
4716123315384
Til producentens hjemmeside
Produktbeskrivelse
Noctua IndustrialPPC NF-F12 - indsats med blæser
Produkttype
Indsats med blæser
Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
2000 opm
Luftstrøm
71,7 cfm
Støjniveau
29.7 dBA
Stik
3-pin stik
Rated Voltage
12 V
Egenskaber
Vortex-Control Notches, Advanced Acoustic Optimisation (AAO), integrerede anti-vibrationspuder, FocusedFlow, tre-fasemotor, Varying Angular Distance, Heptaperf Impeller, Stepped Inlet Design, Inner Surface Microstructures, Metal Bearing Shell
Produktmateriale
Fiberglasforstærket polyamid
Dimensioner (B x D x H)
12 cm x 12 cm x 2.5 cm
Egenskaber
Vandafvisende, støvresistent

Generelt

Produkttype
Indsats med blæser
Produktmateriale
Fiberglasforstærket polyamid
Bredde
12 cm
Dybde
12 cm
Højde
2.5 cm

Varmeafleder & blæser

Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
2000 opm
Luftstrøm
71,7 cfm
Lufttryk
3.94 mm
Støjniveau
29.7 dBA
Stik
3-pin stik
Rated Voltage
12 V
Rated Strøm
0.1 A
Strømforbrug
1.2 W
Egenskaber
Vortex-Control Notches, Advanced Acoustic Optimisation (AAO), integrerede anti-vibrationspuder, FocusedFlow, tre-fasemotor, Varying Angular Distance, Heptaperf Impeller, Stepped Inlet Design, Inner Surface Microstructures, Metal Bearing Shell

Diverse

Monteringspakke
Inkluderet
MTBF (forventet tid mellem fejl)
150,000 time(r)
Egenskaber
Vandafvisende, støvresistent
Overensstemmelsesstandarder
IP52
