Varenummer: 3500109

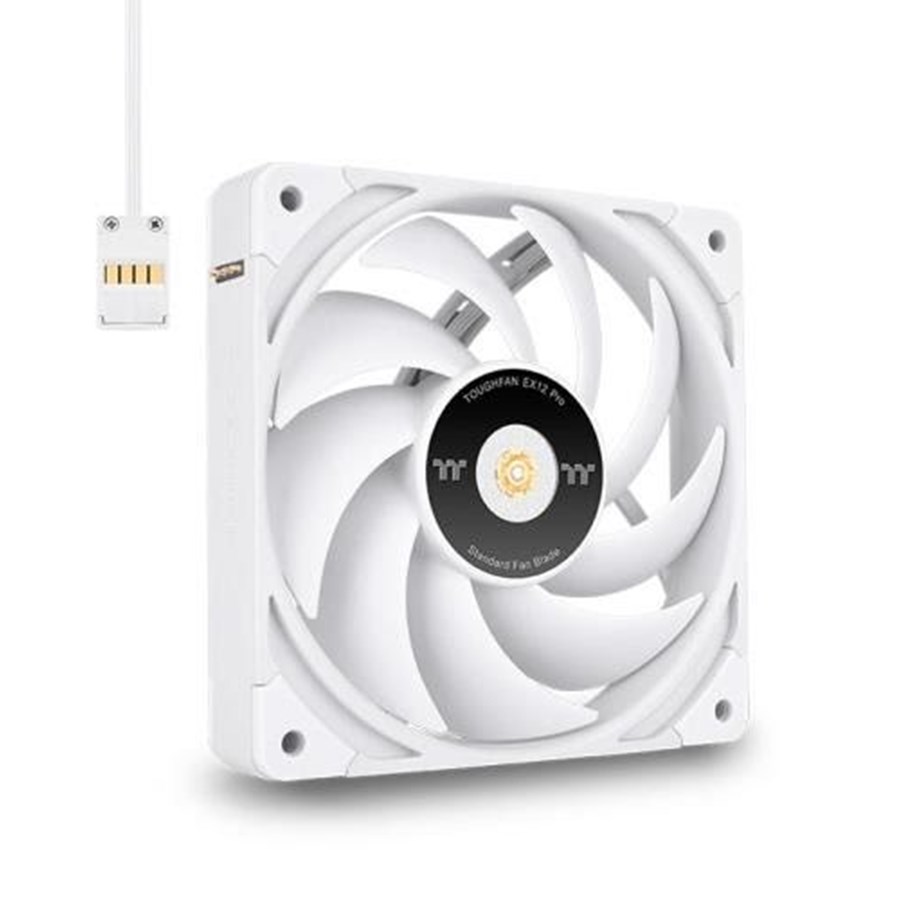

Thermaltake TOUGHFAN EX12 Pro
Thermaltake TOUGHFAN EX12 Pro Computerkabinet Ventilator 12 cm Hvid 3 stk
858,00 kr.
686,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!
Specially Engineered Fan blade
TOUGHFAN EX Pro White incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.
Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
Stronger than Ever With new technology and craftsmanship, the TOUGHFAN EX12 Pro White has a maximum operating speed of 2000 RPM.
Standard Fan Blades can provide an static pressure of 3.19 mmH20 and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.
Improved Structure for Superior Performance
The TOUGHFAN EX Pro White is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.
Stare No More at the Back of the Fan!
Never compromise aesthetics for airflow direction ever again!
TOUGHFAN EX Pro White’s design allow your fans to always face forward!
Cleaning Made Easy!
You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.
Anti-vibration Mounting System
The TOUGHFAN EX Pro White is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!
Specially Engineered Fan blade
TOUGHFAN EX Pro White incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.
Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
Stronger than Ever With new technology and craftsmanship, the TOUGHFAN EX12 Pro White has a maximum operating speed of 2000 RPM.
Standard Fan Blades can provide an static pressure of 3.19 mmH20 and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.
Improved Structure for Superior Performance
The TOUGHFAN EX Pro White is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.
Stare No More at the Back of the Fan!
Never compromise aesthetics for airflow direction ever again!
TOUGHFAN EX Pro White’s design allow your fans to always face forward!
Cleaning Made Easy!
You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.
Anti-vibration Mounting System
The TOUGHFAN EX Pro White is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.
Producent
Varenummer
3500109
Model
CL-F171-PL12WT-A
Ean
4711475644830
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
500 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (lav hastighed)
22,6 dB
Støjniveau (høj hastighed)
29,8 dB
Mindste luftmængde
64,21 kubikfod/min.
Maksimal luftstrøm
70,8 kubikfod/min.
Minimum lufttryk
2,6 mmH2O
Maksimalt lufttryk
3,19 mmH2O
Lejetype
Hydraulisk
Antal pr. pakke
3 stk
Ventilatorens middeltid til fejl (MTTF)
40000 t
Produktfarve
Hvid
Materiale
Liquid Crystal Polymer (LCP), Plast
Antal ventilatorblade
9
Nominel spænding
12 V
Startspænding
6 V
Ventilator strømforbrug
2,04 W
Nominel strøm
0,17 A
Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm
Compliance-certifikater
CE, RoHS, UKCA
Præstation
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Omdrejningshastighed (min.)
500 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (lav hastighed)
22,6 dB
Støjniveau (høj hastighed)
29,8 dB
Mindste luftmængde
64,21 kubikfod/min.
Maksimal luftstrøm
70,8 kubikfod/min.
Minimum lufttryk
2,6 mmH2O
Maksimalt lufttryk
3,19 mmH2O
Lejetype
Hydraulisk
Antal pr. pakke
3 stk
Ventilatorens middeltid til fejl (MTTF)
40000 t
Design
Produktfarve
Hvid
Materiale
Liquid Crystal Polymer (LCP), Plast
Antal ventilatorblade
9
Strømstyring
Nominel spænding
12 V
Startspænding
6 V
Ventilator strømforbrug
2,04 W
Nominel strøm
0,17 A
Vægt & størrelser
Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm
Tekniske detaljer
Compliance-certifikater
CE, RoHS, UKCA
