Varenummer: 3268033

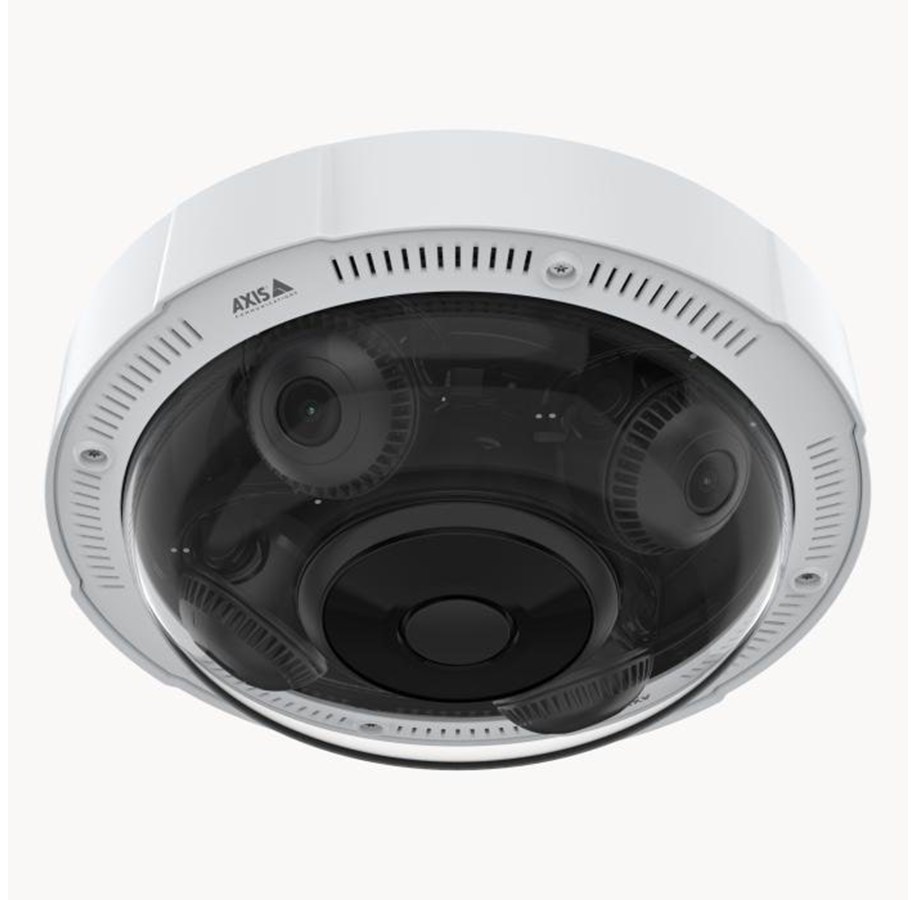

Axis P3737-PLE Panoramic AI-powered 4x5 MP multidirectional Camera
Axis P3737-PLE Kuppel IP-sikkerhedskamera Indendørs & udendørs 2688 x 1944 pixel Loft
22.577,00 kr.
18.061,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 2-3 dages levering
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Producent
Varenummer
3268033
Model
02634-001
Ean
7331021080638
Til producentens hjemmeside
Produktbeskrivelse
AXIS P37 Series P3737-PLE - netværk panoramisk kamera - kuppel - TAA-kompatibel
Enhedstype
Netværk panoramisk kamera - multi-sensor - kuppel - udendørs - hærværkssikret / vejrbestandig
Audio
Ja: to-vejs audio via valgfri audio og I/O-interface, højttalerparring
Dimensioner (B x D x H)
25.5 cm x 25.5 cm x 9.2 cm
Vægt
2 kg
Farve
Hvid, NCS S 1002-B
Connectivity teknologi
Med ledning
Kamera
Farve - Dag/nat
Optisk zoom
2.5 x
Maksimum opløsning
2592 x 1944
Billedhastighed (maks.)
30 frames pr. sekund
Bevægelsesdetektion
Ja
Billedsensortype
PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP
Minimumbelysning
0.19 lux - farve - F1.9 - 50 IRE
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
Brændviddekontrol
Forskellige brændvidder
Brændvidde
3.2 mm - 8.1 mm
Fokusindstilling
(mindsteafstand 0.5 m)
Objektiv Iris
F/1.9-3.2 - fast irisblænder
Poanoreringsvinkel (grad)
-90 til +90
Krængningsvinkel (grad)
25 to 95
Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Spænding
PoE Plus Class 4
Egenskaber
IR-korrigeret objektiv, fjernzoom, fjernfokus, infrarødt skåret filter, dyb læring-behandlingsenhed (DLPU), Zipstream-teknologi, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), lav latens-tilstand, videostreaming-indikator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction teknologi, dag/nat-tærskel, tonekortlægning, tromleforvrængningskorrektion, tekstskabelon, billedskabelon, dynamisk tekst, Privacy Mask Function, polygon-fortrolighedsmaske, Lightfinder-teknologi, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profil S) support, ONVIF (Profile T) support, Pixel Counter Support, scene metadata, underskrevet firmware, råstyrkeforsinkelsesbeskyttelse, digest-autentificering, kodeordsbeskyttelse, Axis Edge Vault, Axis-enheds-ID, sikker keystore, signeret video, sikker støvle, IP-adressefiltrering
TAA kompatibel
Ja
Miljømæssige parametre (operativ)
-30 °C - 50 °C; 10 - 100% RH (condensing) relativ luftfugtighed
Generelt
Enhedstype
Netværk panoramisk kamera
Lydsupport
Ja: to-vejs audio via valgfri audio og I/O-interface, højttalerparring
Formfaktor
Kuppel
Connectivity teknologi
Med ledning
Bredde
25.5 cm
Dybde
25.5 cm
Højde
9.2 cm
Vægt
2 kg
Lokalisering
Argentina, Australien, Brasilien, Kina, Europa, Japan, Korea, United Kingdom, USA
Kamera
Type
Farve - Dag/nat - multi-sensor - udendørs - hærværkssikret / vejrbestandig
Digital videoformat
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC
Max digital video opløsning
2592 x 1944
Bevægelsesdetektion
Ja
Belysningsområde
1/5 sek - 1/50000 sek
Minimumbelysning
0.19 lux - farve - F1.9 - 50 IRE
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
Infrarød LEDs
Ja
Infrarød distance
15 m
Videooptagelse
2592 x 1944 @ 20 fps
2560 x 1440 @ 25/30 fps
2560 x 1440 @ 25/30 fps
RAM
4 GB
Flashhukommelse
8 GB
Egenskaber
IR-korrigeret objektiv, fjernzoom, fjernfokus, infrarødt skåret filter, dyb læring-behandlingsenhed (DLPU), Zipstream-teknologi, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), lav latens-tilstand, videostreaming-indikator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction teknologi, dag/nat-tærskel, tonekortlægning, tromleforvrængningskorrektion, tekstskabelon, billedskabelon, dynamisk tekst, Privacy Mask Function, polygon-fortrolighedsmaske, Lightfinder-teknologi, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profil S) support, ONVIF (Profile T) support, Pixel Counter Support, scene metadata, underskrevet firmware, råstyrkeforsinkelsesbeskyttelse, digest-autentificering, kodeordsbeskyttelse, Axis Edge Vault, Axis-enheds-ID, sikker keystore, signeret video, sikker støvle, IP-adressefiltrering
Billedsensor
Type
4 x 5 MP PS RGB CMOS 4 x 1/2.7"
Objektivkonstruktion
Type
Forskellige brændvidder
Optisk zoom
2.5 x
Brændvidde
3.2 mm - 8.1 mm
Objektiv Iris
F/1.9-3.2 fast irisblænder
Min. fokusafstand
0.5 m
Vandret synsfelt (grader)
37 - 99
Lodret synsfelt (grader)
28 - 70
Diagonalt synsfelt (grad)
47 - 134
Panorering
Område (grad)
-90 til +90
Vipning
Område (grad)
25 to 95
Interface
Netværksgrænseflade
Ethernet 10Base-T/100Base-TX/1000Base-T
Netværksprotokoller
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Ekspansion / Konnektivitet
Porte
LAN - RJ-45
Understøttede hukommelseskort
microSD Kort, microSDHC Kort, microSDXC-kort
Krypterings algoritme
TLS 1.2, TLS 1.3
Diverse
Udstyr inkluderet
Stikforbindelsesværn, kabelpakninger
TAA kompatibel
Ja
Overensstemmelsesstandarder
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-fri, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Farve
Hvid, NCS S 1002-B
Effekt
Strømkrav
PoE Plus Class 4
Strømenhed
13.25 Watt
Programmer / Systemkrav
Med software
AXIS Object Analytics, AXIS Video Motion Detection
Miljømæssige parametre
Min. driftstemperatur
-30 °C
Maks. driftstemperatur
50 °C
Relativ luftfugtighed (operativ)
10 - 100% RH (condensing)
Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Merlin ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
