Varenummer: 2551491

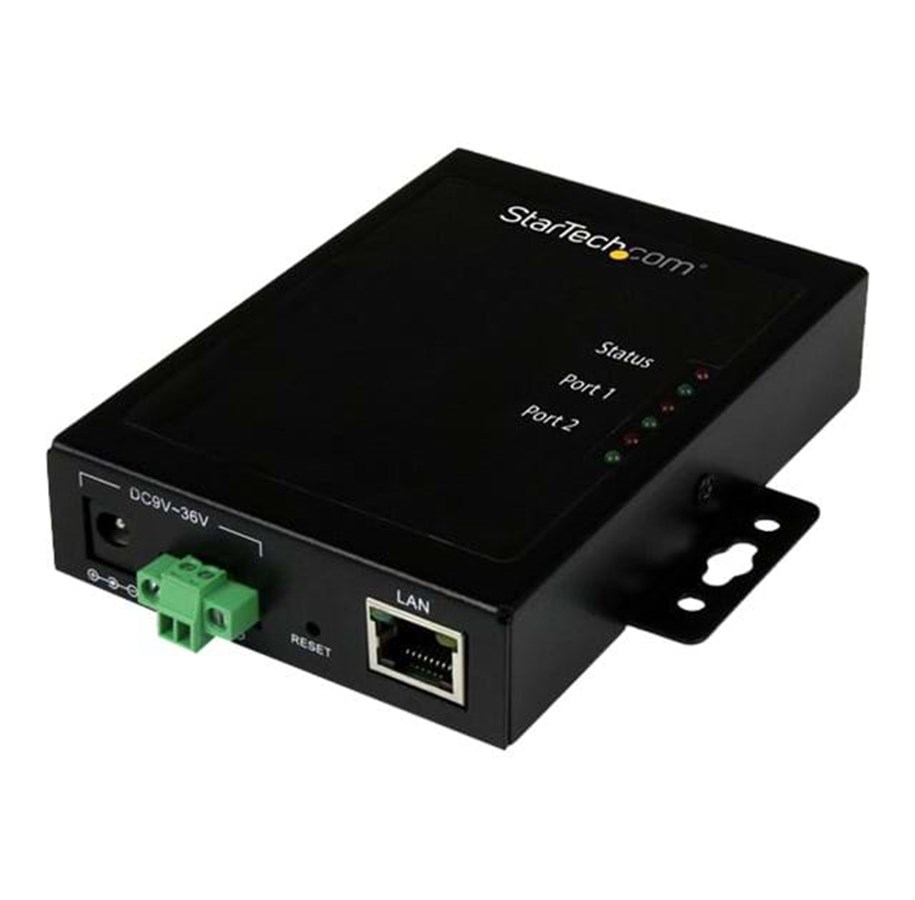

StarTech.com 2 Port Serial-to-IP Ethernet Device Server

RS232, Enhedsserver, 2 porte, 10Mb LAN, 100Mb LAN, RS-232, AC 120/230 V / DC 9, 36 V, i væggen

2.214,00 kr. 1.771,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 6-7 dages levering
Oplader medfølger
Charger included

Connect, configure and manage two remote RS232 serial devices, over an IP network. This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block p

Producent
Varenummer
2551491
Model
NETRS2322P
Ean
0065030864145
Til producentens hjemmeside
Produktbeskrivelse
Startech 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - enhedsserver
Enhedstype
Enhedsserver
Formfaktor
Montebar i væggen
Lokalisering
Australien, Nordamerika, United Kingdom, Europa
Antal porte
2
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232
Udstyr inkluderet
Strøm terminalblok
OS nødvendig
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Effekt
AC 120/230 V / DC 9 - 36 V
Overskudsspænding
Ja
Dimensioner (B x D x H)
8 cm x 11.3 cm x 2.5 cm
Vægt
310 g

Generelt

Enhedstype
Enhedsserver
Bredde
8 cm
Dybde
11.3 cm
Højde
2.5 cm
Vægt
310 g
Fås i farverne
Sort
Lokalisering
Australien, Nordamerika, United Kingdom, Europa

Netværk

Model
Montebar i væggen
Antal porte
2
Forbindelsesteknologi
Kablet
Dataoverførselshastighed
460.8 Kbps
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232
Netværks/overføselsprotokol
TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP
Protokol til fjernadministration
Telnet
Statusindikatorer
Status, LAN, link/aktivitet
Egenskaber
Komplet duplex ydeevne, auto-negotiation, auto-uplink (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, nulstillingsknap, 8 KV Contact Electrostatic Discharge Protection
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u

Ekspansion / Konnektivitet

Interface
2 x RS-232 - DB-9
1 x 100Base-TX - RJ-45

Diverse

Udstyr inkluderet
Strøm terminalblok
Overensstemmelsesstandarder
FCC, RoHS, WEEE, RCM

Effekt

Strømenhed
Ekstern strømforsyning
Overskudsspænding
Ja
Nødvendig spænding
AC 120/230 V / DC 9 - 36 V

Programmer / Systemkrav

Med software
Drivers & Utilities, Virtual COM software (kun Windows)
OS nødvendig
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Miljømæssige parametre

Min. driftstemperatur
0 °C
Maks. driftstemperatur
85 °C
