Varenummer: 2802130

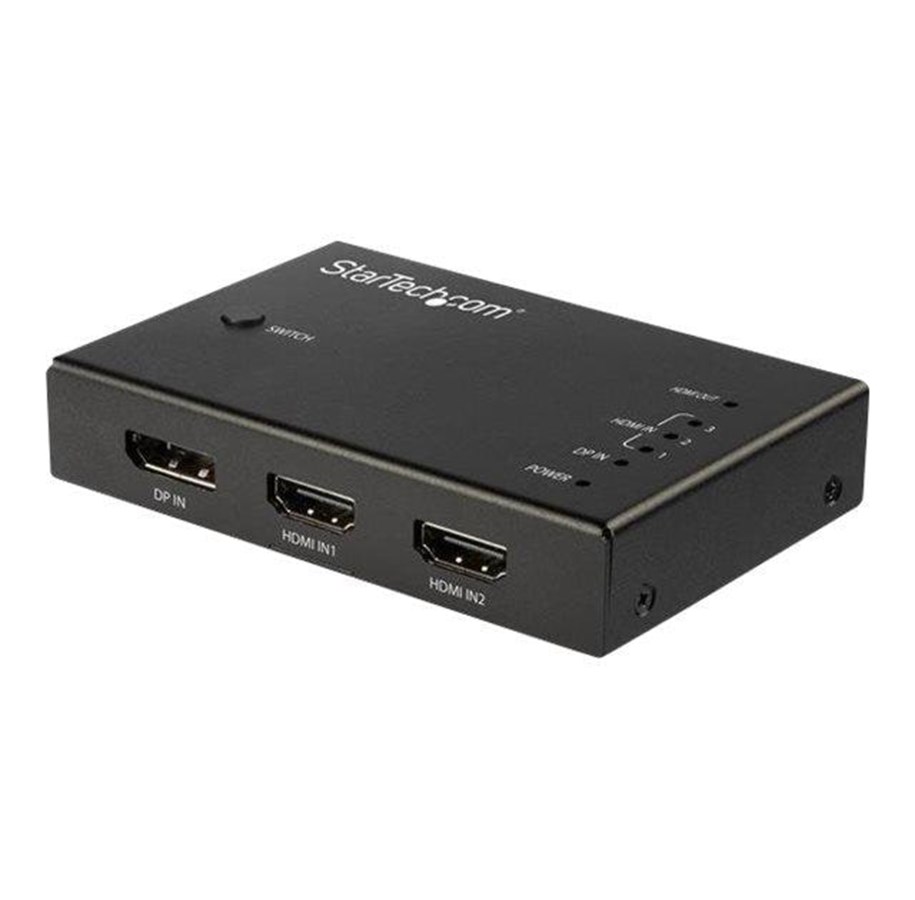

StarTech.com 4 Port HDMI Video Switch - 3x HDMI & 1x DisplayPort - 4K 60Hz - video/audio switch - 4 ports

3x HDMI & 1x DisplayPort, 4K 60Hz, Video-/audioswitch, 3 x HDMI + 1 x DisplayPort, desktop

772,00 kr. 617,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 5-6 dages levering

This 4-input HDMI video switch lets you share an HDMI 2.0 display or projector with three HDMI video sources and one DisplayPort video source.The multi-port HDMI switch lets you deliver the capabilities of your HDMI 2.0 video sources to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switcher box works with HDMI 2.0 displays with output resolutions of up to 4096 x 2160 at 60Hz.With full support for HDMI 2.0 devices and 4:4:4 chroma subsampling, this 4K HDMI video switcher supports a bandwidth up to 18Gbps. As well, the switch supports DisplayPort 1.2 with HBR2, making it ideal for high-resolution computer tasks.This multi-port video switcher offers four input options, including one DisplayPort and three HDMI ports, enabling you to switch from one of four sources to your HDMI video display. The mix-and-match input options provide users with a flexible solution so they are not limited to one specific input.This HDMI switcher box ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray player as soon as it's switched on.This automatic HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.

Producent
Varenummer
2802130
Model
VS421HDDP
Ean
0065030881883
Til producentens hjemmeside
Video porttype
HDMI/DisplayPort
HDMI-version
2.0
HSMI-indgang
3
Antal HDMI-udgange
1
Antal DisplayPorts
1
3,5 mm ind
Ja
DC-in-stik
Ja
Materiale
Metal
Produktfarve
Sort
HDCP
Ja
Maksimal opdateringshastighed
60 Hz
Understøttede grafikopløsninger
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
LED-indikatorer
Ja
Maksimal opløsning
4096 x 2160 pixel
Lyd-output kanaler
7.1 kanaler
HDCP-version
2.2
Vekselstrømsindgangsspænding
100 - 240 V
Indgangsstrøm til vekselstrømsadapter
0,3 A
Udgangsspænding for vekselstrømsadapter
5 V
Vekselstrømsadapterens udgangsstrøm
1 A
Strømstiktype
Type M
Certificering
CE, FCC, REACH
Bredde
66 mm
Dybde
100 mm
Højde
20 mm
Vægt
300 g
Pakkebredde
160 mm
Pakkedybde
125 mm
Pakkehøjde
65 mm
Pakkevægt
400 g
Fjernbetjening inkluderet
Ja
Brugervejledning
Ja
Monteringsbeslag inkluderet
Ja
Stikadapter type
NA/JP, UK, EU, ANZ
Skruer inkluderet
Ja
Driftstemperatur (T-T)
0 - 45 °C
Opbevaringstemperatur (T-T)
-20 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 90%
Compliance-certifikater
RoHS
Harmoniseret systemkode (HS)
85176990

Porte & Grænseflader

Video porttype
HDMI/DisplayPort
HDMI-version
2.0
HSMI-indgang
3
Antal HDMI-udgange
1
Antal DisplayPorts
1
3,5 mm ind
Ja
DC-in-stik
Ja

Funktioner

Materiale
Metal
Produktfarve
Sort
HDCP
Ja
Maksimal opdateringshastighed
60 Hz
Understøttede grafikopløsninger
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
LED-indikatorer
Ja
Maksimal opløsning
4096 x 2160 pixel
Lyd-output kanaler
7.1 kanaler
HDCP-version
2.2

Strømstyring

Vekselstrømsindgangsspænding
100 - 240 V
Indgangsstrøm til vekselstrømsadapter
0,3 A
Udgangsspænding for vekselstrømsadapter
5 V
Vekselstrømsadapterens udgangsstrøm
1 A
Strømstiktype
Type M

Godkendelser

Certificering
CE, FCC, REACH

Vægt & størrelser

Bredde
66 mm
Dybde
100 mm
Højde
20 mm
Vægt
300 g

Emballeringsdata

Pakkebredde
160 mm
Pakkedybde
125 mm
Pakkehøjde
65 mm
Pakkevægt
400 g

Emballage indhold

Fjernbetjening inkluderet
Ja
Brugervejledning
Ja
Monteringsbeslag inkluderet
Ja
Stikadapter type
NA/JP, UK, EU, ANZ
Skruer inkluderet
Ja

Driftsbetingelser

Driftstemperatur (T-T)
0 - 45 °C
Opbevaringstemperatur (T-T)
-20 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 90%

Tekniske detaljer

Compliance-certifikater
RoHS

Logistik data

Harmoniseret systemkode (HS)
85176990
