Varenummer: 3419586

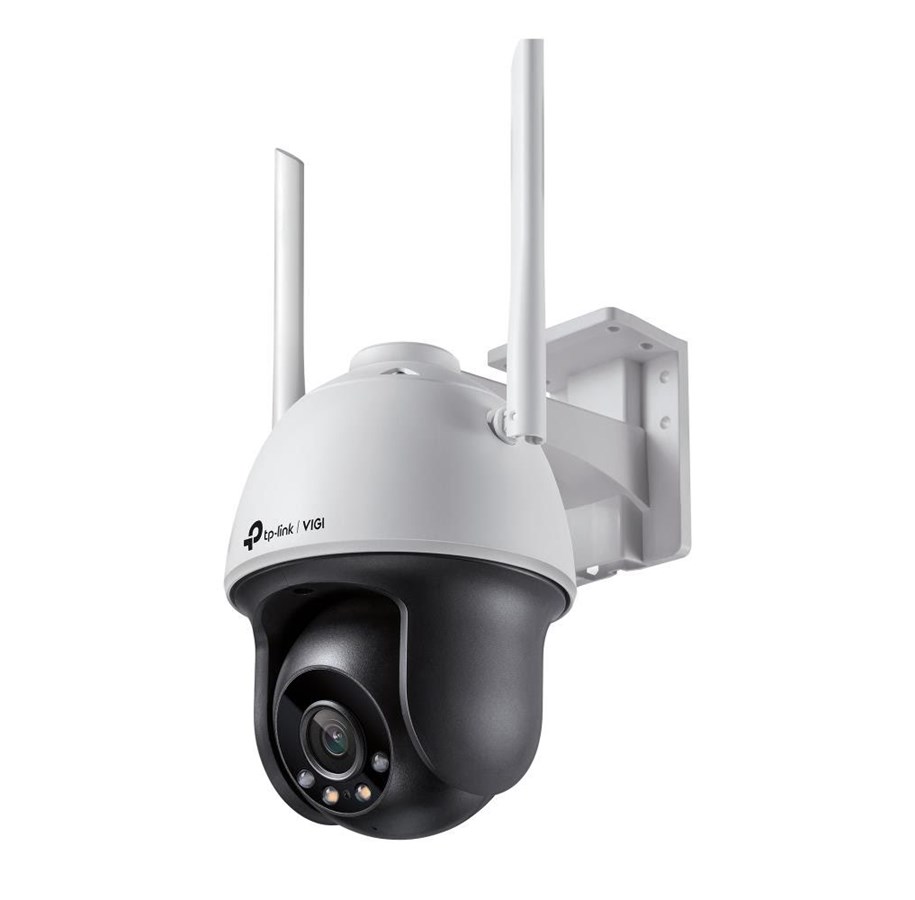

TP-Link VIGI C540-W V1
TP-Link VIGI C540-W V1 Tårn IP-sikkerhedskamera Indendørs & udendørs 2560 x 1440 pixel Loft/væg
775,00 kr.
620,00 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Producent
Varenummer
3419586
Model
VIGI C540-W(4MM)
Ean
4897098683798
Til producentens hjemmeside
Kontakt producent
Type
IP-sikkerhedskamera
Understøttet placering
Indendørs & udendørs
Forbindelsesteknologi
Kabel & trådløs
Certificering
RCM, BSMI, VCCI, NCC, JRF, KC
Monteringstype
Loft/væg
Produktfarve
Sort, Hvid
Formfaktor
Tårn
Husmateriale
Plast
Kode for international beskyttelse (IP)
IP66
Kamerapanorering kontrol
Ja
Kontrol af kamerahældning
Ja
Objektivets synsvinkel, vandret
79°
Objektivets synsvinkel, lodret
43°
Objektivets synsvinkel, diagonal
93°
Hældningsvinkelområde
0 - 120°
Hældningshastighed
44 grader i sekundet
Panoreringsområde
0 - 350°
Panoreringshastighed
44 grader i sekundet
Sensortype
CMOS
Optisk sensorstørrelse
25,4 / 3 mm (1 / 3")
Progressiv scanning
Ja
Antal linser
1
Zoom kapacitet
Ja
Registringsafstand
80 m
Observeringsafstand
33 m
Genkendt afstand
16 m
Linse, diameter
4 mm
Identifikationsfstand
8 m
Nattesyn
Ja
Nattesyn, afstand
30 m
LED type
IR
Infrarød bølgelængde
850 nm
Maksimal opløsning
2560 x 1440 pixel
Samlet antal megapixels
4 MP
Video komprimeringsformater
H.264, H.264+, H.265, H.265+
Understøttede grafikopløsninger
320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Billedhastighed
30 fps
Videostreaming
Ja
Støjreduktion
Ja
Støjreduktionsteknologi
3D støjreduktion
Justering af billedkvalitet
Lysstyrke, Kontrast, Spejl, Mætning, Skarphed
Fortrolighedspolitik maskering
Ja
Bit-rate
256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)
Ja
Indbyggede højttaler(e)
Ja
Indbygget mikrofon
Ja
Ethernet LAN
Ja
Wi-Fi
Ja
Bluetooth
Ingen
Ethernet-grænsefladetype
Hurtigt ethernet
Understøttede netværksprotokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi-standarder
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Realtidsvisning
Ja
Antal samtidige direkte visningskanaler
3 kanaler
Indbygget HDD
Ingen
Indbygget kortlæser
Ja
Kompatible hukommelseskort
MicroSD (TransFlash)
Maksimal størrelse på hukommelseskort
256 GB
Ethernet LAN-porte (RJ-45)
1
Beskyttelse af adgangskode
Ja
IP-adresse filtrering
Ja
Sikkerhedsalgoritmer
WPA, WPA2-PSK
HTTPS -kryptering
Ja
Intelligent Video Surveillance (IVS) systemfunktioner
Registrering af personer
Spejl
Ja
Digest-autentificering
Ja
Knap til nulstilling
Ja
Adfærdsanalyse
Påvisning af indtrængen, Registrering af linjeoverskæring
Strømkilde type
DC
DC udgangsspænding
12
Driftstemperatur (T-T)
-30 - 60 °C
Bredde
120 mm
Dybde
172 mm
Højde
198 mm
Grundlæggende begivenhed
Motion Detection, Camera Tampering Detection, Exception
Pakkebredde
163 mm
Pakkedybde
243 mm
Pakkehøjde
243 mm
Pakkevægt
1,21 kg
Compliance-certifikater
CE, RoHS
Antal kameraer
1
Monteringssæt
Ja
Præstation
Type
IP-sikkerhedskamera
Understøttet placering
Indendørs & udendørs
Forbindelsesteknologi
Kabel & trådløs
Certificering
RCM, BSMI, VCCI, NCC, JRF, KC
Design
Monteringstype
Loft/væg
Produktfarve
Sort, Hvid
Formfaktor
Tårn
Husmateriale
Plast
Kode for international beskyttelse (IP)
IP66
Kamera
Kamerapanorering kontrol
Ja
Kontrol af kamerahældning
Ja
Objektivets synsvinkel, vandret
79°
Objektivets synsvinkel, lodret
43°
Objektivets synsvinkel, diagonal
93°
Hældningsvinkelområde
0 - 120°
Hældningshastighed
44 grader i sekundet
Panoreringsområde
0 - 350°
Panoreringshastighed
44 grader i sekundet
Billedsensor
Sensortype
CMOS
Optisk sensorstørrelse
25,4 / 3 mm (1 / 3")
Progressiv scanning
Ja
Linsesystem
Antal linser
1
Zoom kapacitet
Ja
Registringsafstand
80 m
Observeringsafstand
33 m
Genkendt afstand
16 m
Linse, diameter
4 mm
Identifikationsfstand
8 m
Nattesyn
Nattesyn
Ja
Nattesyn, afstand
30 m
LED type
IR
Infrarød bølgelængde
850 nm
Video
Maksimal opløsning
2560 x 1440 pixel
Samlet antal megapixels
4 MP
Video komprimeringsformater
H.264, H.264+, H.265, H.265+
Understøttede grafikopløsninger
320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Billedhastighed
30 fps
Videostreaming
Ja
Støjreduktion
Ja
Støjreduktionsteknologi
3D støjreduktion
Justering af billedkvalitet
Lysstyrke, Kontrast, Spejl, Mætning, Skarphed
Fortrolighedspolitik maskering
Ja
Bit-rate
256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)
Ja
Lyd
Indbyggede højttaler(e)
Ja
Indbygget mikrofon
Ja
Netværk
Ethernet LAN
Ja
Wi-Fi
Ja
Bluetooth
Ingen
Ethernet-grænsefladetype
Hurtigt ethernet
Understøttede netværksprotokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi-standarder
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Realtidsvisning
Ja
Antal samtidige direkte visningskanaler
3 kanaler
Lagring
Indbygget HDD
Ingen
Indbygget kortlæser
Ja
Kompatible hukommelseskort
MicroSD (TransFlash)
Maksimal størrelse på hukommelseskort
256 GB
Porte & Grænseflader
Ethernet LAN-porte (RJ-45)
1
Sikkerhed
Beskyttelse af adgangskode
Ja
IP-adresse filtrering
Ja
Sikkerhedsalgoritmer
WPA, WPA2-PSK
HTTPS -kryptering
Ja
Intelligent Video Surveillance (IVS) systemfunktioner
Registrering af personer
Spejl
Ja
Digest-autentificering
Ja
Administrationsfunktioner
Knap til nulstilling
Ja
Adfærdsanalyse
Påvisning af indtrængen, Registrering af linjeoverskæring
Strømstyring
Strømkilde type
DC
DC udgangsspænding
12
Driftsbetingelser
Driftstemperatur (T-T)
-30 - 60 °C
Vægt & størrelser
Bredde
120 mm
Dybde
172 mm
Højde
198 mm
Funktioner
Grundlæggende begivenhed
Motion Detection, Camera Tampering Detection, Exception
Emballeringsdata
Pakkebredde
163 mm
Pakkedybde
243 mm
Pakkehøjde
243 mm
Pakkevægt
1,21 kg
Bæredygtighed
Compliance-certifikater
CE, RoHS
Emballage indhold
Antal kameraer
1
Monteringssæt
Ja
