Varenummer: 3184503

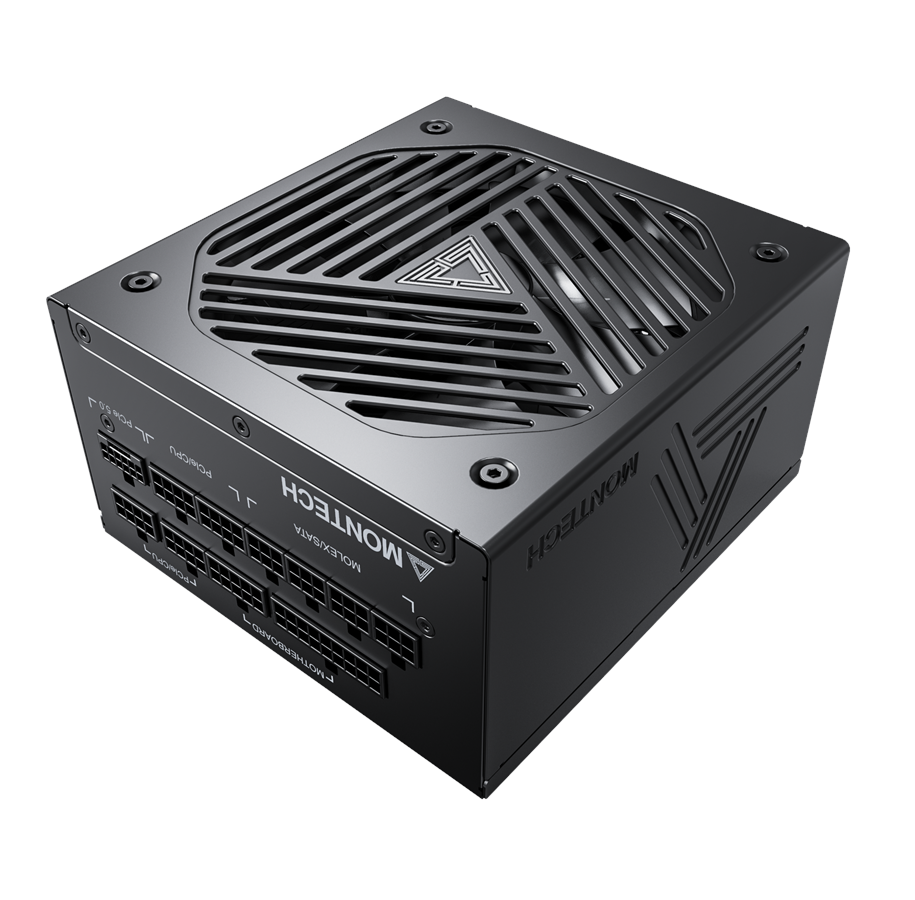

Montech Titan 850 Strømforsyning - 850 Watt - 135 mm - ATX - 80 Plus Gold certified

Strømforsyning ( intern ), ATX standard: ATX12V 3.0, 80 plus Gold, 135mm blæser med zero RPM mode teknologi og fluid dynamic leje, aktiv PFC, kabler: 4 x 8 (6+2) pins til grafikkort / 1 x 12VHPWR 600 Watt pins til grafikkort (PCI Express 5.0 ready) / 12 x 5 pins SATA / 4 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, fuld modulær og tynde/sleeved kabler, kabler, farve: sort, 850 watt

På lager
Normalpris 1.199,00 kr.
992,00 kr.
793,60 kr. ekskl. moms
Gratis fragt (privatkunde)
3 stk. På lager - 1-2 dages levering

Silent Power for Every Gamer:
The MONTECH TITAN GOLD Series

Introducing the MONTECH TITAN GOLD series, delivering premium components and ultra-quiet high performance tailored for gamers at every level. With ATX 3.0 and PCIe Gen 5.0 compatibility, the TITAN GOLD is a must-have for those eyeing the NVIDIA GeForce RTX 40 series GPUs.

Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.

Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

80 PLUS Gold & Cybenetics Gold Certified
TITAN GOLD is extremely efficient and quiet with dual authentic certifications, and a maximum efficiency above 92%.

Elevate Your System with TITAN GOLD's Premium Components
Elevate your setup with TITAN GOLD's premium Japanese capacitors, rated at 105°C and bolstered by dual bulk capacitors. These high-quality components ensure unmatched durability and stability for your system.

Power Perfected, Unleash Optimal Performance with TITAN GOLD
TITAN GOLD's advanced technology, featuring half-bridge, LLC, and Synchronous Rectifier (SR) tech, ensures exceptional signal stability and power efficiency. With DC-to-DC conversion for precise voltage regulation and minimal ripple noise, TITAN GOLD guarantees optimal performance

Whisper-Quiet Performance with TITAN GOLD Smart Zero Fan Function
Experience whisper-quiet operation with the TITAN GOLD's 135mm fluid dynamic bearing (FDB) fan. With zero RPM mode until 40% loading, it maintains silence during light usage. At maximum load, the noise level peaks at just 27 dBA at 1400 RPM.

Cybenetics Ultra Quiet Certified
TITAN GOLD earns the prestigious Cybenetics LAMBDA A Certification, verifying its superior noise reduction and efficiency levels through independent testing.

Compatible with all generations of GPU
The TITAN GOLD series provide various I/O interfaces, leading to the satisfaction of the power supply not only for the new generation 40 series GPU, but all generations from AMD and NVIDIA.

Reliable & Safe
Equipped with industrial level of power protection, including all six protections mechanisms to ensure stable and safe system operation. Plus 10 year-warranty to guarantee long-term reliable use.

Strømkabel (intern)

Producent
Varenummer
3184503
Model
TIS0124
Ean
4710562744552
Til producentens hjemmeside
Total effekt
850 W
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
12 A
Strømkorrektionsfaktor (PFC)
Aktiv
Kombineret effekt (+3,3 V)
120 W
Kombineret effekt (+12 V)
850 W
Kombineret effekt (+5 V)
120 W
Kombineret effekt (-12V)
3,6 W
Kombineret effekt (+5 VSB)
15 W
Maks. udgangsstrøm (+3,3 V)
22 A
Maks. udgangsstrøm (+12 V)
70,8 A
Maks. udgangsstrøm (+5 V)
22 A
Maks. udgangsstrøm (-12V)
0,3 A
Maks. udgangsstrøm (+5 VSB)
3 A
Effektivitet
90%
Strømbeskyttelsesfunktioner
Overstrøm, Overstrøm, Højspænding, Kortslutning, Lavspænding
Motherboard, strømstik
20+4 pin ATX
Perifere (Molex) strømstik (4-pin)
4
Antal SATA strømstik
12
PCI ekspres strømforbindelser (6+2 pin)
4
CPU strømstik (4+4 pin)
Ja
ATX strømstik (20+4 pin)
Ja
Kabeltype
Fuldt modulær
Formål
All-in-One PC
Strømforsyningenhed (PSU) formfaktor
ATX
80 PLUS certificering
80 PLUS Gold
Understøttet motherboard, formfaktorer
ATX
ATX-version
3.0
Produktfarve
Sort
Kølingstype
Aktiv
Ventilator diameter
13,5 cm
Tænd-/slukkontakt
Ja
Driftstemperatur (T-T)
0 - 45 °C
Kabler inkluderet
Vekselstrøm, CPU, SATA
Bredde
160 mm
Dybde
150 mm
Højde
86 mm
Garantiperiode
10 År

Strømstyring

Total effekt
850 W
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
12 A
Strømkorrektionsfaktor (PFC)
Aktiv
Kombineret effekt (+3,3 V)
120 W
Kombineret effekt (+12 V)
850 W
Kombineret effekt (+5 V)
120 W
Kombineret effekt (-12V)
3,6 W
Kombineret effekt (+5 VSB)
15 W
Maks. udgangsstrøm (+3,3 V)
22 A
Maks. udgangsstrøm (+12 V)
70,8 A
Maks. udgangsstrøm (+5 V)
22 A
Maks. udgangsstrøm (-12V)
0,3 A
Maks. udgangsstrøm (+5 VSB)
3 A
Effektivitet
90%
Strømbeskyttelsesfunktioner
Overstrøm, Overstrøm, Højspænding, Kortslutning, Lavspænding

Porte & Grænseflader

Motherboard, strømstik
20+4 pin ATX
Perifere (Molex) strømstik (4-pin)
4
Antal SATA strømstik
12
PCI ekspres strømforbindelser (6+2 pin)
4
CPU strømstik (4+4 pin)
Ja
ATX strømstik (20+4 pin)
Ja
Kabeltype
Fuldt modulær

Præstation

Formål
All-in-One PC
Strømforsyningenhed (PSU) formfaktor
ATX
80 PLUS certificering
80 PLUS Gold
Understøttet motherboard, formfaktorer
ATX
ATX-version
3.0

Design

Produktfarve
Sort
Kølingstype
Aktiv
Ventilator diameter
13,5 cm
Tænd-/slukkontakt
Ja

Driftsbetingelser

Driftstemperatur (T-T)
0 - 45 °C

Emballage indhold

Kabler inkluderet
Vekselstrøm, CPU, SATA

Vægt & størrelser

Bredde
160 mm
Dybde
150 mm
Højde
86 mm

Logistik data

Garantiperiode
10 År
