Varenummer: 2924446

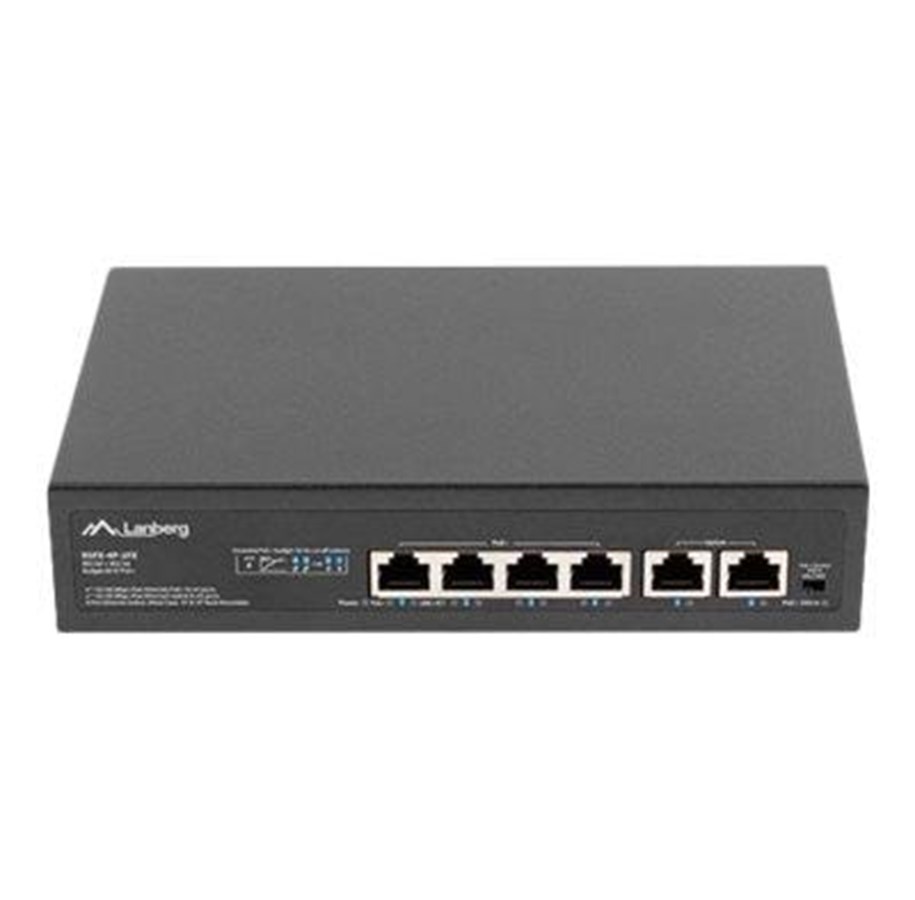

Lanberg RSFE-4P-2FE-60 - switch - 6 ports - unmanaged
Switch, ikke administreret, 2 x 10/100 (uplink) + 4 x 10/100 (PoE+), desktop, væg-monterbar, PoE+ (60 W)
291,00 kr.
232,80 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-4P-2FE-60 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time.
As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.
Producent
Varenummer
2924446
Model
RSFE-4P-2FE-60
Ean
5901969428797
Til producentens hjemmeside
Produktbeskrivelse
Lanberg RSFE-4P-2FE-60 - switch - 6 porte - ikke administreret
Enhedstype
Switch - 6 porte - ikke administreret
Pakningstype
1U
Undertype
Fast Ethernet
Porte
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budget
60 W
Præstation
Skift af båndbredde: 1,2 Gbps
MAC adresse table størrelse
1 K indtastningshukommelse
Egenskaber
4KV ESD Protector, datatransport
Overensstemmelsesstandarder
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Effekt
AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)
20 cm x 11.8 cm x 4.445 cm
Vægt
730 g
Generelt
Enhedstype
Switch - 6 porte - ikke administreret
Pakningstype
Desktop, væg-monterbar 1U
Undertype
Fast Ethernet
Porte
2 x 10/100 (uplink) + 4 x 10/100 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budget
60 W
Præstation
Skift af båndbredde: 1,2 Gbps
MAC adresse table størrelse
1 K indtastningshukommelse
Egenskaber
4KV ESD Protector, datatransport
Overensstemmelsesstandarder
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ekspansion / Konnektivitet
Interface
4 x 100Base-TX RJ-45 PoE+ - 30 W
2 x 100Base-TX RJ-45 uplink
2 x 100Base-TX RJ-45 uplink
Effekt
Strømenhed
Intern strømforsyning
Nødvendig spænding
AC 120/230 V (50/60 Hz)
Strømforbrug ved drift
65 watt
Diverse
Rackmonteringspakke
Inkluderet
Overensstemmelsesstandarder
RoHS, IP20
Mål og vægt
Bredde
20 cm
Dybde
11.8 cm
Højde
4.445 cm
Vægt
730 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Min. lagertemperatur
-40 °C
Maks. Opbevaringstemperatur
70 °C
