Varenummer: 2434575

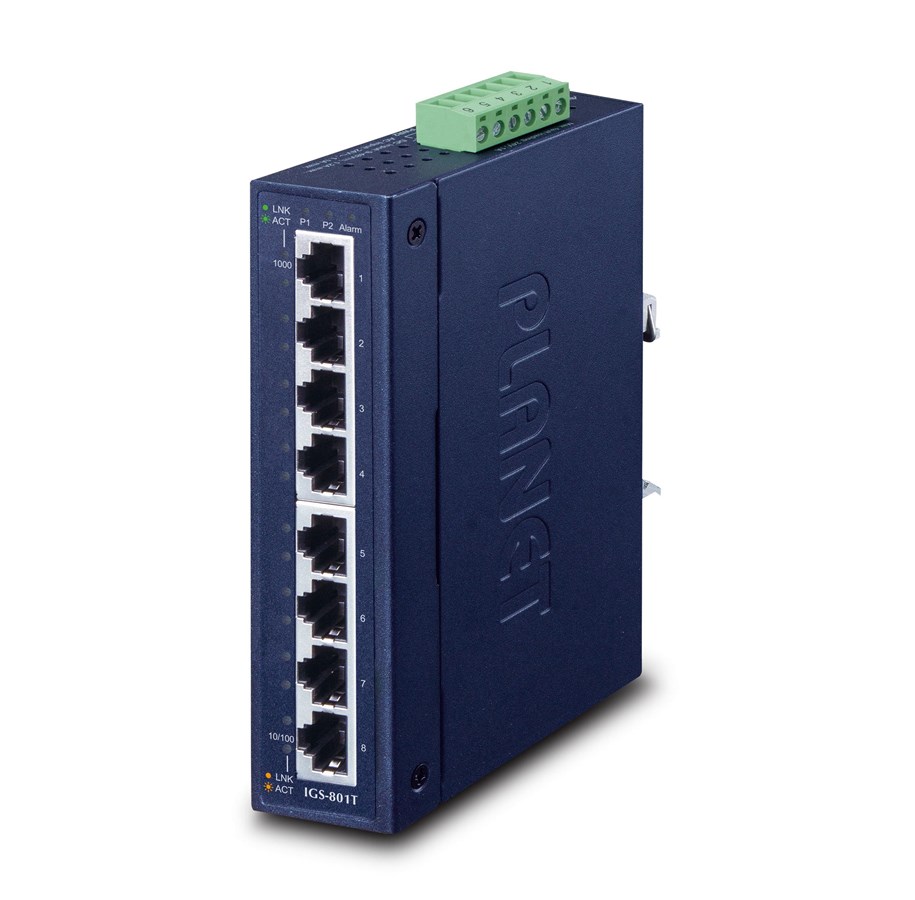

PLANET IGS-801T 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch
Switch, 8 x 10/100/1000, DIN monterbar på skinne
1.169,00 kr.
935,20 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 3 dages levering
The compact, IP-30 standard metal case IGS-801T allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
Producent
Varenummer
2434575
Model
IGS-801T
Ean
4711213687792
Til producentens hjemmeside
Produktbeskrivelse
PLANET IGS-801T - switch - 8 porte
Enhedstype
Switch - 8 porte
Undertype
Gigabit Ethernet
Porte
8 x 10/100/1000
MAC adresse table størrelse
8K indtastningshukommelse
Egenskaber
Auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, Jumbo Frames support
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Dimensioner (B x D x H)
13.5 cm x 8.7 cm x 3.2 cm
Vægt
473 g
Generelt
Enhedstype
Switch - 8 porte
Pakningstype
DIN monterbar på skinne
Undertype
Gigabit Ethernet
Porte
8 x 10/100/1000
MAC adresse table størrelse
8K indtastningshukommelse
Egenskaber
Auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, Jumbo Frames support
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Ekspansion / Konnektivitet
Interface
8 x 1000Base-T RJ-45
Diverse
Overensstemmelsesstandarder
UL, cUL, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IEC 60529 IP30
Mål og vægt
Bredde
13.5 cm
Dybde
8.7 cm
Højde
3.2 cm
Vægt
473 g
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
5 - 90%
Min. lagertemperatur
-40 °C
Maks. Opbevaringstemperatur
75 °C
Lagerfugtighedsgrad
5 - 90 % (ikke kondenserende)
