Varenummer: 3116239

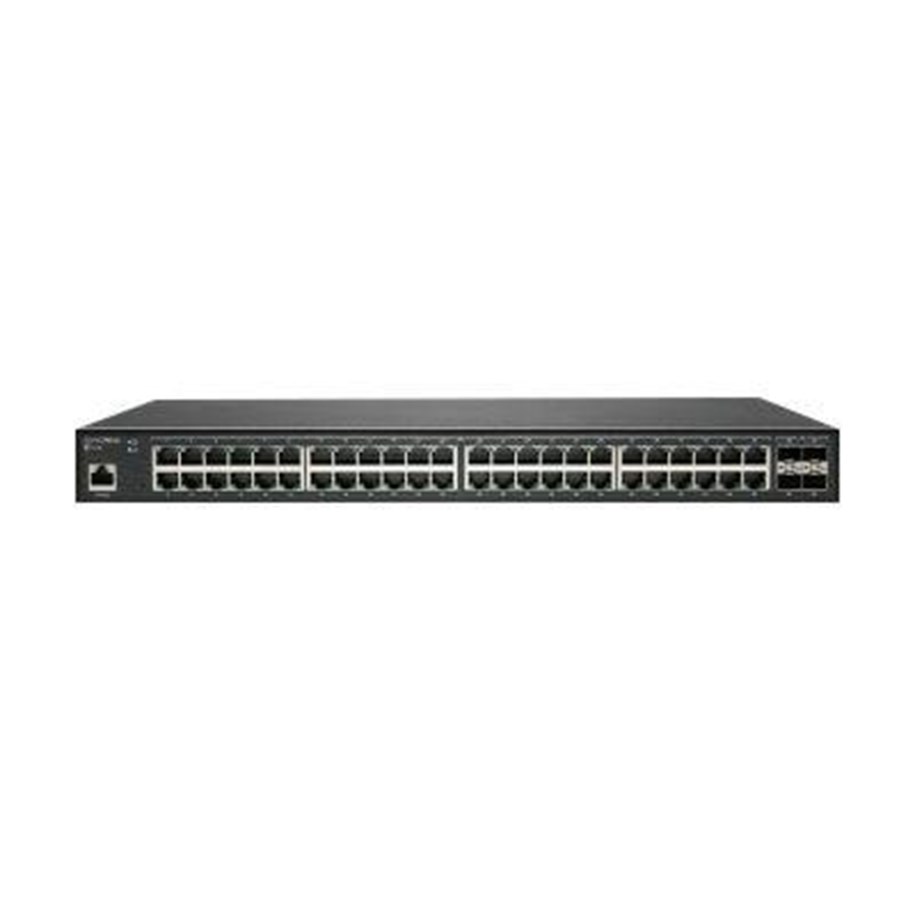

SonicWALL Switch SWS14-48

Switch, Administreret, 48 x 10/100/1000 + 4 x 10 Gigabit SFP+, monterbar på stativ, med 1 års 24x7 Support

9.043,00 kr. 7.234,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 9-10 dages levering

The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability. Its unified security posture, high port density, and multi-gigabit performance capabilities make it ideal for small and medium-sized business (SMB), and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small, to undergo digital transformation and keep pace with the changing network and security landscape.The SonicWall Secure SD-Branch solution transforms user experience at branch office locations by delivering a unified platform that enables branches to be deployed in minutes and delivers unified visibility and threat detection from a single pane of glass. SonicWall SD-Branch components consist of SonicWall next-generation firewalls with Secure SD-WAN, Capture Security Center with Zero-Touch Deployment, SonicWall Switches, SonicWave access points (AP), Capture Client and Cloud App Security. With the flexibility that SonicWall Secure SD-Branch offers, organizations can now be more agile, open and cloud-centric.An integral part of the next-generation branch transformation, the SonicWall Switches are managed via firewalls for unified, single-pane-of-glass management of the entire SonicWall infrastructure. By tightly integrating with firewalls, the solution benefits from unified security posture and offers an end-to-end security solution that simplifies deployment, management and troubleshooting. This ensures seamless security and eliminates gap in security posture that may arise with third party switches.In conjunction, the SonicWall Switch offers Zero-Touch Deployment capability with the ability to quickly roll out devices across branches spread out globally. Admins can quickly and securely deploy these switches at new locations without requiring any costly on-site IT personnel.Prioritize certain traffic on the network such as VOIP for video conferences while working from home, with features such as QoS. Easily segment devices in the network and maintain compliance. Segregating can be accomplished by creating policies or VLANs. Features such as 802.1X authentication allow business to maintain PCI compliance.

Producent
Varenummer
3116239
Model
02-SSC-8380
Til producentens hjemmeside
Switch-type
Administreret
Switch lag
L2
Basis omskiftning RJ-45 Ethernet porte, antal
48
Basis omskiftning RJ-45 Ethernet porttype
Gigabit Ethernet (10/100/1000)
Antal SFP + modulslots
4
Port til konsol
RJ-45
Netværksstandarder
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x
10G understøttelse
Ja
Kobber ethernet kabelteknologi
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port-spejlning
Ja
IP-routing
Ja
Auto MDI/MDI-X
Ja
VLAN understøttelse
Ja
Vituelle LAN funktioner
Tagged VLAN
Antal VLAN'er
4096
MAC adresselabel
32000 entries
Switch kapacitet
176 Gbit/sek.
Jumbo Frames support
Ja
DHCP funktioner
DHCP client, DHCP relay, DHCPv6 snooping
IGMP snooping
Ja
Sikkerhedsalgoritmer
802.1x RADIUS, HTTPS, SNMP, SSH
Multicast-understøttelse
Ja
Stativ-montering
Ja
Formfaktor
1U
Produktfarve
Sort
Intern hukommelse
512 MB
Flashhukommelse
128 MB
Gennemsnitstid mellem fejl (MTBF)
222974 t
Strømkilde
Vekselstrøm
Strømforsyning inkluderet
Ja
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
1.5 A
Strømforbrug (maks.)
60 W
Strøm over Ethernet (PoE)
Ingen
Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 95%
Varmeafgivelse
184,2 BUT/t
Bredde
440 mm
Dybde
44 mm
Højde
260 mm
Vægt
3,2 kg
Certificering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/ GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL

Administrationsfunktioner

Switch-type
Administreret
Switch lag
L2

Porte & Grænseflader

Basis omskiftning RJ-45 Ethernet porte, antal
48
Basis omskiftning RJ-45 Ethernet porttype
Gigabit Ethernet (10/100/1000)
Antal SFP + modulslots
4
Port til konsol
RJ-45

Netværk

Netværksstandarder
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x
10G understøttelse
Ja
Kobber ethernet kabelteknologi
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port-spejlning
Ja
IP-routing
Ja
Auto MDI/MDI-X
Ja
VLAN understøttelse
Ja
Vituelle LAN funktioner
Tagged VLAN
Antal VLAN'er
4096

Dataoverførsel

MAC adresselabel
32000 entries
Switch kapacitet
176 Gbit/sek.
Jumbo Frames support
Ja

Sikkerhed

DHCP funktioner
DHCP client, DHCP relay, DHCPv6 snooping
IGMP snooping
Ja
Sikkerhedsalgoritmer
802.1x RADIUS, HTTPS, SNMP, SSH

Multicast funktioner

Multicast-understøttelse
Ja

Design

Stativ-montering
Ja
Formfaktor
1U
Produktfarve
Sort

Præstation

Intern hukommelse
512 MB
Flashhukommelse
128 MB
Gennemsnitstid mellem fejl (MTBF)
222974 t

Strømstyring

Strømkilde
Vekselstrøm
Strømforsyning inkluderet
Ja
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
1.5 A
Strømforbrug (maks.)
60 W

Power over Ethernet (PoE)

Strøm over Ethernet (PoE)
Ingen

Driftsbetingelser

Driftstemperatur (T-T)
0 - 40 °C
Opbevaringstemperatur (T-T)
-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)
10 - 95%
Varmeafgivelse
184,2 BUT/t

Vægt & størrelser

Bredde
440 mm
Dybde
44 mm
Højde
260 mm
Vægt
3,2 kg

Godkendelser

Certificering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/ GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
