Varenummer: 2979322

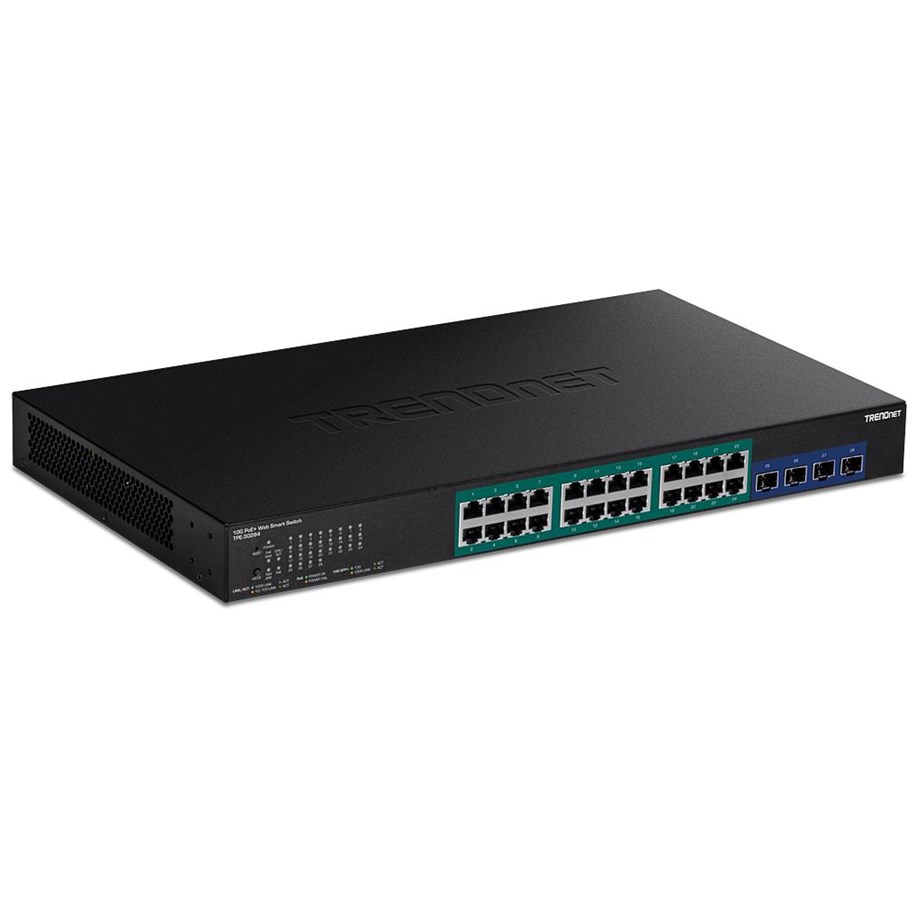

TRENDnet TPE-30284 28-Port Gigabit Web Smart PoE+ Switch
Switch, smart, 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, monterbar på stativ, PoE+ (370 W), AC 100, 240 V, TAA-kompatibel
3.208,00 kr.
2.566,40 kr. ekskl. moms
Gratis fragt (privatkunde)
Fjernlager, 4-5 dages levering
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.
Producent
Varenummer
2979322
Model
TPE-30284
Ean
0710931161878
Til producentens hjemmeside
Produktbeskrivelse
TRENDnet TPE 30284 - switch - 28 porte - smart - monterbar på stativ - TAA-kompatibel
Enhedstype
Switch - 28 porte - smart
Pakningstype
Monterbar på stativ 1U
Undertype
Gigabit Ethernet
Porte
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budget
370 W
Præstation
Omkoblingskapacitet: 128 Gbps
Videresendelsespræstation (64-byte pakkestørrelse): 95.2 Mpps
Videresendelsespræstation (64-byte pakkestørrelse): 95.2 Mpps
Kapacitet
VLAN-grupper: 256
MAC adresse table størrelse
16K indtastningshukommelse
Jumborammesupport
12KB
Routingprotokol
IGMPv2, IGMP, IGMPv3
Protokol til fjernadministration
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Egenskaber
DHCP-understøttelse, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, MAC-adresse-filtrering, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, STP support, RSTP support, VCT-teknologi, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, LLDP support, LACP, Traffic Control, SNMP fælde, MIB, GVRP, CoS, SP, mærket VLAN, DoS, båndbreddekontrol pr. port, 2 blæsere, 1,5 MB pakkebuffer, Storm Control, portfiltrering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, tilbageløkke-detektion
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Effekt
AC 100 - 240 V (50/60 Hz)
Dimensioner (B x D x H)
44 cm x 24.9 cm x 4.4 cm
Vægt
3.94 kg
TAA kompatibel
Ja
Generelt
Enhedstype
Switch - 28 porte - smart
Pakningstype
Monterbar på stativ 1U
Undertype
Gigabit Ethernet
Porte
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budget
370 W
Præstation
Omkoblingskapacitet: 128 Gbps
Videresendelsespræstation (64-byte pakkestørrelse): 95.2 Mpps
Videresendelsespræstation (64-byte pakkestørrelse): 95.2 Mpps
Kapacitet
VLAN-grupper: 256
MAC adresse table størrelse
16K indtastningshukommelse
Jumborammesupport
12KB
Routingprotokol
IGMPv2, IGMP, IGMPv3
Protokol til fjernadministration
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Krypterings algoritme
TLS, SSL 3.0, SSL 2.0
Autentificeringsmetode
RADIUS, TACACS+
Egenskaber
DHCP-understøttelse, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, MAC-adresse-filtrering, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, STP support, RSTP support, VCT-teknologi, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, LLDP support, LACP, Traffic Control, SNMP fælde, MIB, GVRP, CoS, SP, mærket VLAN, DoS, båndbreddekontrol pr. port, 2 blæsere, 1,5 MB pakkebuffer, Storm Control, portfiltrering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, tilbageløkke-detektion
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Ekspansion / Konnektivitet
Interface
24 x 1000Base-T RJ-45 PoE+
4 x 10 Gbit LAN SFP+
4 x 10 Gbit LAN SFP+
Effekt
Strømenhed
Intern strømforsyning
Nødvendig spænding
AC 100 - 240 V (50/60 Hz)
Strømforbrug ved drift
23.7 Watt
Diverse
Rackmonteringspakke
Inkluderet
MTBF (forventet tid mellem fejl)
287,724 timer
Overensstemmelsesstandarder
UL, FCC
TAA kompatibel
Ja
Mål og vægt
Bredde
44 cm
Dybde
24.9 cm
Højde
4.4 cm
Vægt
3.94 kg
Miljømæssige parametre
Min. driftstemperatur
-5 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
95 % (ikke-kondenserende)
