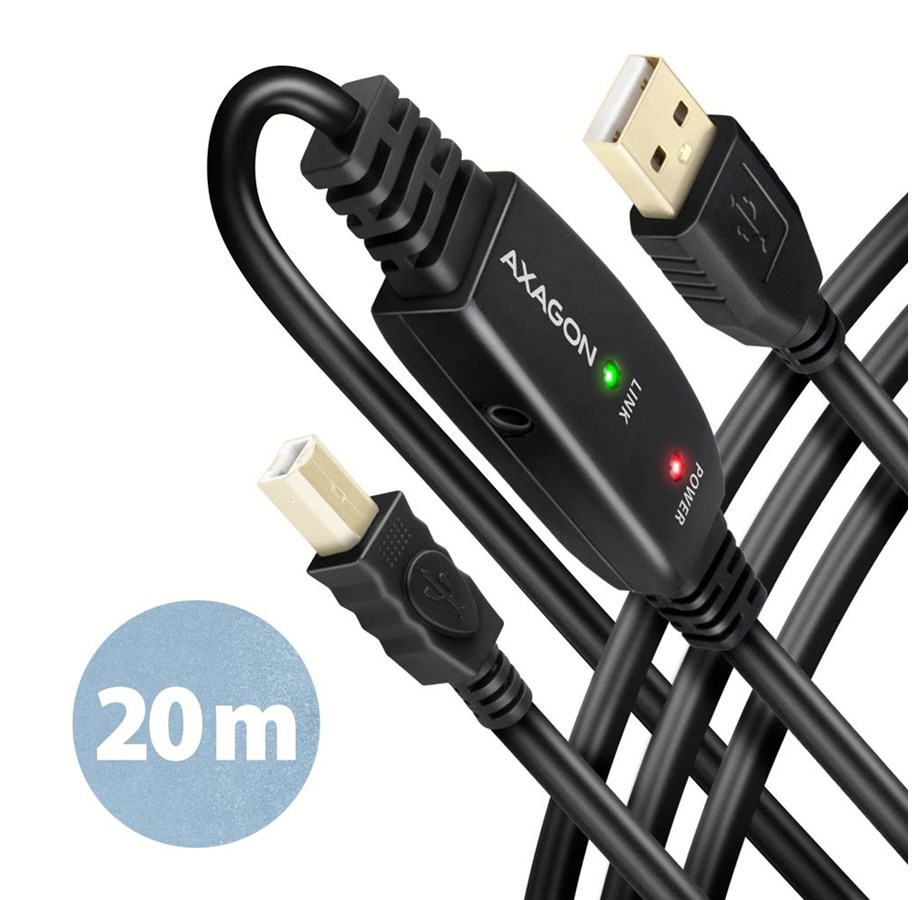

AXAGON ADR-220B USB 2.0 A-M -> B-M aktivt forbindelses-/repeaterkabel 20m - Kabel - Digital/Daten USB-kabel
Aktivt USB 2.0 repeaterkabel AXAGON ADR-220B forbinder en computer med USB-A til en USB-B-enhed, forstærker signalet og understøtter dataoverførsel ved high, full og low speed.
Designet til printere, scannere, plottere og andre USB-B-enheder bruger dette aktive forbindelseskabel et afskærmet kabel og et kompakt aktivt hus til installation i kabelsystemer eller el-installationskanaler.
- USB Type A han-indgang til computerforbindelse
- USB Type B han-udgang til fjern USB-enhedsforbindelse
- Overførselshastigheder på 480, 12 og 1.5 Mbit/s
- USB-busstrøm med valgfri ekstra strømindgang
- Plug and Play- og Hot Plug-understøttelse
- LED-indikatorer for strøm og USB-enhedsforbindelse
Med medfølgende strømkabel og bred understøttelse af operativsystemer giver det en praktisk måde at tilslutte USB-B-udstyr på længere afstand.
A great advantage of the ADR-220B extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.
The remarkably compact body of the repeater cable allows trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.
Input:
• USB 2.0 for connection to a computer
• USB Type A (M) male connector
Output:
• USB 2.0 for connecting a remote USB device
• USB Type B (M) male connector
• transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)
Power supply:
• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.
• The active part of the cable includes a connector (Ø 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5V/ 1-2 A.
• The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.
Other features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.
• Full Plug and Play and Hot Plug support.
• Two LEDs indicating power and USB device connection.
• Behind the active USB cable, a common passive USB cable can also be used.
• Dimensions of active part with are 95 x 22 x 13 mm, cable length 20 m.
• Weight 674 g.
Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
• Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.
Package contains:
• USB 2.0 A-M > B-M active repeater 20 m long,
• USB-A / 3.5 mm power cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box.
